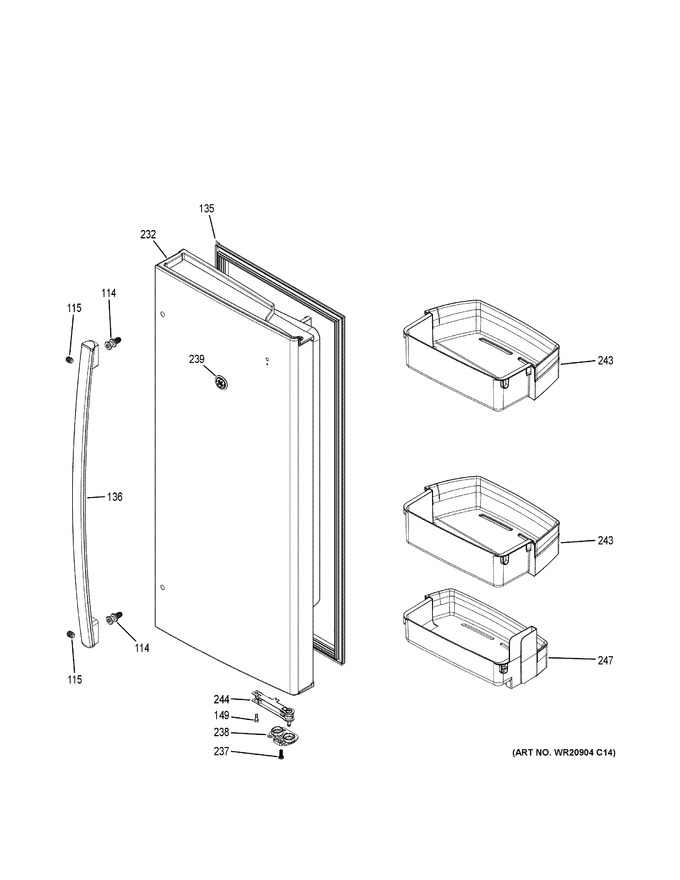

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 114 | WR01X11007 | Fastener Door Handle |  |
|||
| 115 | WR01X11014 | Set Screw | |
|||
| 135 | WR14X10377 | Gasket Ff Dgy | |
|||
| 136 | WR12X23647 | Arc Handle Asm Ff | |
|||
| 149 | WR01X10196 | Screw 8-18 Hi/lo 5/8 | |
|||
| 232 | WR78X26298 | Door Foam Ff Rh Asm Ss | |
|||
| 237 | WR01X11032 | Scr 10-24 Ab Rnt 20 5/8 | |
|||
| 238 | WR02X13634 | Stop Door Rh/lh Asm | |
|||
| 239 | WR04X29375 | Gea Badge Flat Chrome | |
|||
| 243 | WR71X11052 | Bin Gal Rh Ff Asm | |
|||
| 244 | WR11X23035 | Closure Door Asm Rh | |
|||
| 247 | WR71X11050 | Bin Cond Rh Ff Asm | |
