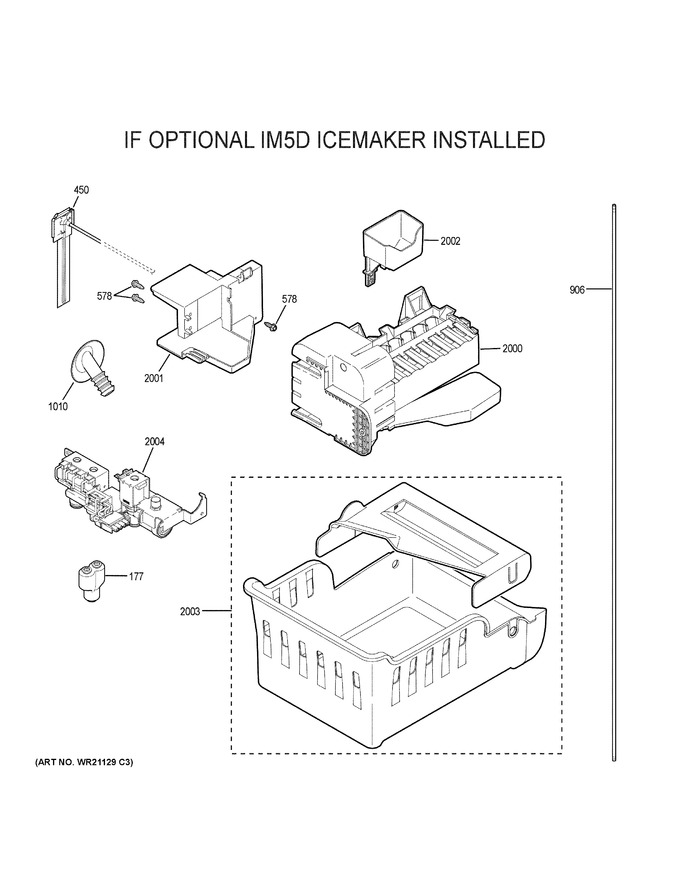

Diagram #	Part Number		Description	Series	Find a Video
177	WR02X13723		Coupler 1/4 "y"
450	WR02X20621		Tube Fz Im Fill Htr Asm
578	WR01X11012		Scr 8-18 Ab Hxw 9/16 S
906	WR02X13699		Tube Pex Mc Valve
1010	WR02X13760		Grommet Ff Liner
2000	WR30X25766		Icemaker Asm
2001	WR17X23054		Housing Wire Im Fz
2002	WR30X25485		Cup Fill Fz Im
2003	WR30X23076		Bucket Ice Asm
2004	WR57X27527		Valve Double Im Asm
