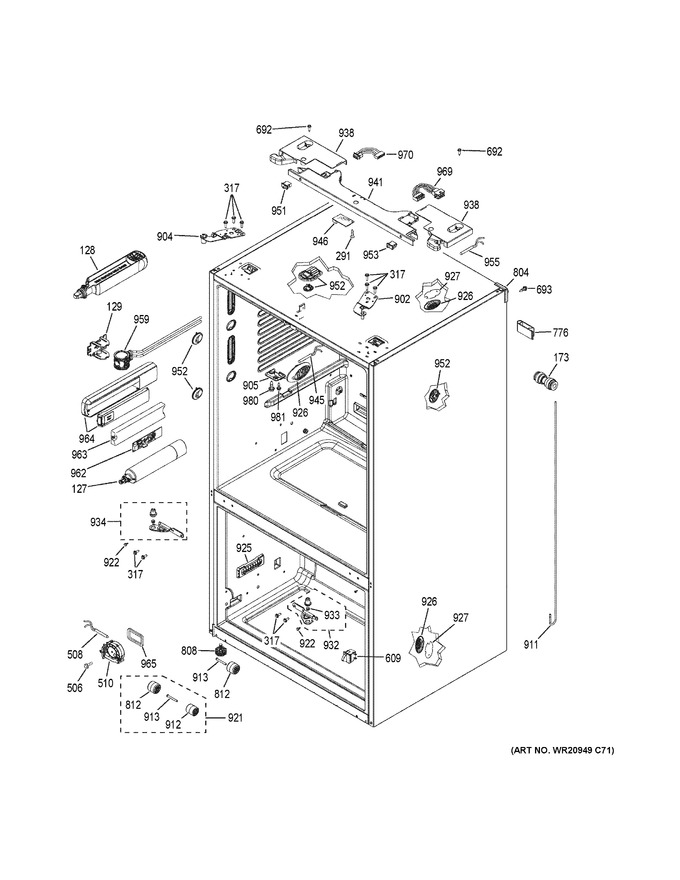

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 127 | RPWFE | Refer Water Filter (rfid) |  |
|||
| 128 | WR17X23645 | Plug Bypass Rfid Asm | |
|||
| 129 | WR17X13069 | Brkt Filter Manifold | |
|||
| 173 | WR02X13738 | Coupler Straight 1/4 | |
|||
| 291 | WR01X10649 | Scr 8-10 Pl Pnp 1/2 S | |
|||
| 317 | WR01X11049 | Scr 1/4-20 Hxw 7/8 S | |
|||
| 506 | WD02X10067 | Screw 8-16 Hxw 1/2 Ss | |
|||
| 508 | WR55X11151 | Sensor Temperature | |
|||
| 510 | WR60X10342 | Fan Motor Im Asm / Sensor | |
|||
| 609 | WR23X21072 | Switch Light | |
|||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 | |
|||
| 693 | WR01X10593 | Scr 8-18 Ab Ihxw 3/4 S | |
|||
| 776 | WR02X10522 | Clamp Tube | |
|||
| 804 | WR02X13759 | Cap Case Corner Asm Dgy | |
|||
| 808 | WR01X11046 | Screw Leveling Asm | |
|||
| 812 | WR02X13694 | Wheel Overmold Asm Rear | |
|||
| 902 | WR13X25910 | Hinge Top Pin Asm Rh | |
|||
| 904 | WR13X25911 | Hinge Top Pin Asm Lh | |
|||
| 905 | WR02X13716 | Striker Top Mullion | |
|||
| 911 | WR02X13673 | Tubing Pex 55.3 In | |
|||
| 912 | WR02X13685 | Wheel | |
|||
| 913 | WR01X11008 | Axle Wheel | |
|||
| 921 | WR49X10268 | Front/rear Wheel & Axle | |
|||
| 922 | WR01X26257 | Scr 8-32 Hxw 3/4 S | |
|||
| 925 | WR02X13623 | Louver Duct Im Return Fz | |
|||
| 926 | WR02X13729 | Grille Thermistor | |
|||
| 927 | WR01X11066 | Shunt Sensor | |
|||
| 932 | WR13X10976 | Hinge Center Asm Rh | |
|||
| 933 | WR01X11016 | Screw Hinge Ctr Adj | |
|||
| 934 | WR13X10982 | Hinge Center Asm Lh | |
|||
| 938 | WR17X20164 | Hinge Endcap Asm Dgy | |
|||
| 941 | WR17X13217 | Top Cover Middle Dgy | |
|||
| 945 | WR55X11150 | Sensor Temperature | |
|||
| 946 | WR55X24585 | Pcb Asm Humidity Board | |
|||
| 951 | WR23X29161 | Fresh Food Door Light Switch | |
|||
| 952 | WR55X48388 | Fresh Food Led White | |
|||
| WR55X25754 | Cover Led Ff Asm Ww | |
||||
| 953 | WR23X29162 | Fresh Food Door Light Switch | |
|||
| 955 | WR55X11153 | Sensor Temperature | |
|||
| 959 | WR02X13684 | Filter Manifold | |
|||
| 962 | WR55X23345 | Rfid Water Filter Board | |
|||
| 963 | WR02X23748 | Cover Filter Rfid | |
|||
| 964 | WR02X26526 | Cover Water Filter Asm | |
|||
| 965 | WR14X10384 | Gasket Duct Fan Im | |
|||
| 969 | WR23X28778 | Ac Door Switch Harness | |
|||
| 970 | WR23X10777 | Harness Door Case | |
|||
| 980 | WR01X24387 | Scr 8-18 Ab Hxwp 9/16s | |
|||
| 981 | WR01X24402 | Scr 8-18 Ab Flp 3/4 S Zn | |
