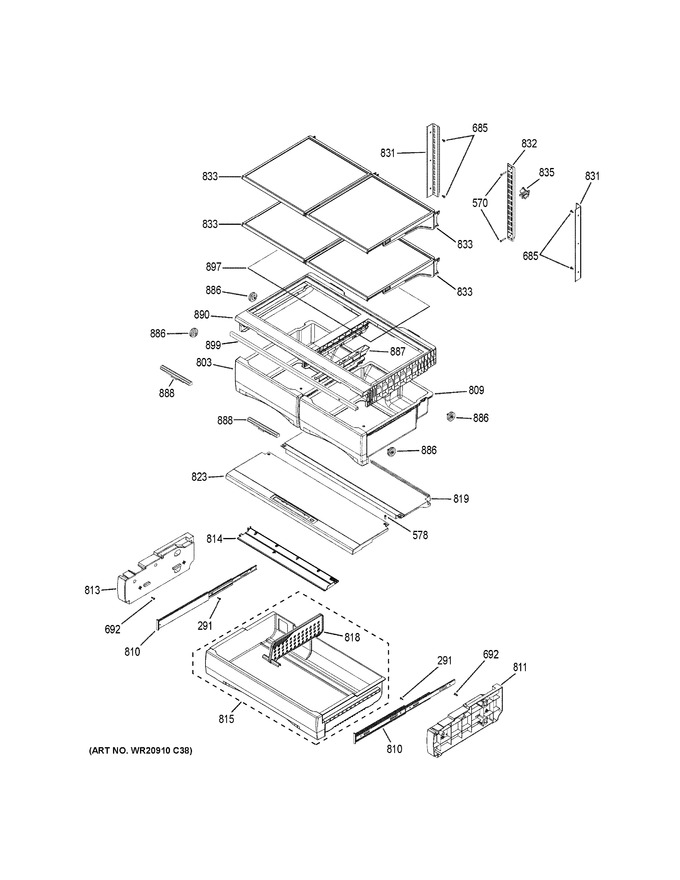

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 291 | WR01X10649 | Scr 8-10 Pl Pnp 1/2 S |  |
|||
| 570 | WR1X1757 | Scr 8-18 Hxw 1 1/4s | |
|||
| 578 | WR01X11012 | Scr 8-18 Ab Hxw 9/16 S | |
|||
| 685 | WR02X29370 | Screw 8-18 Ab Hxw 1/2 S | |
|||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 | |
|||
| 803 | WR32X10895 | Pan Veg Lh Asm | |
|||
| 809 | WR32X10894 | Pan Veg Rh Asm | |
|||
| 810 | WR72X10440 | Slide Asm Mp Lh | |
|||
| 811 | WR72X10432 | Support Side Rh | |
|||
| 813 | WR72X10434 | Support Side Lh | |
|||
| 814 | WR32X23048 | Diffuser Meat Pan | |
|||
| 815 | WR32X10868 | Pan Meat Asm | |
|||
| 818 | WR17X13074 | Divider Meat Pan | |
|||
| 819 | WR72X23040 | Cover Mp Top Back | |
|||
| 823 | WR32X24373 | Cover Front Mp Asm | |
|||
| 831 | WR72X21071 | Track Side Ff | |
|||
| 832 | WR72X10429 | Track Center Ff | |
|||
| 833 | WR32X10870 | Shelf Asm | |
|||
| 835 | WR02X13679 | Spacer Track | |
|||
| 886 | WR02X13658 | Roller Asm | |
|||
| 887 | WR72X10431 | Guide Roller Veg Pan | |
|||
| 888 | WR17X24925 | Damper Veg Pan | |
|||
| 890 | WR32X10864 | Veg Top Frame Asm | |
|||
| 897 | WR32X10865 | Glass Veg Pan | |
|||
| 899 | WR02X21803 | Bar Reinforcement | |
