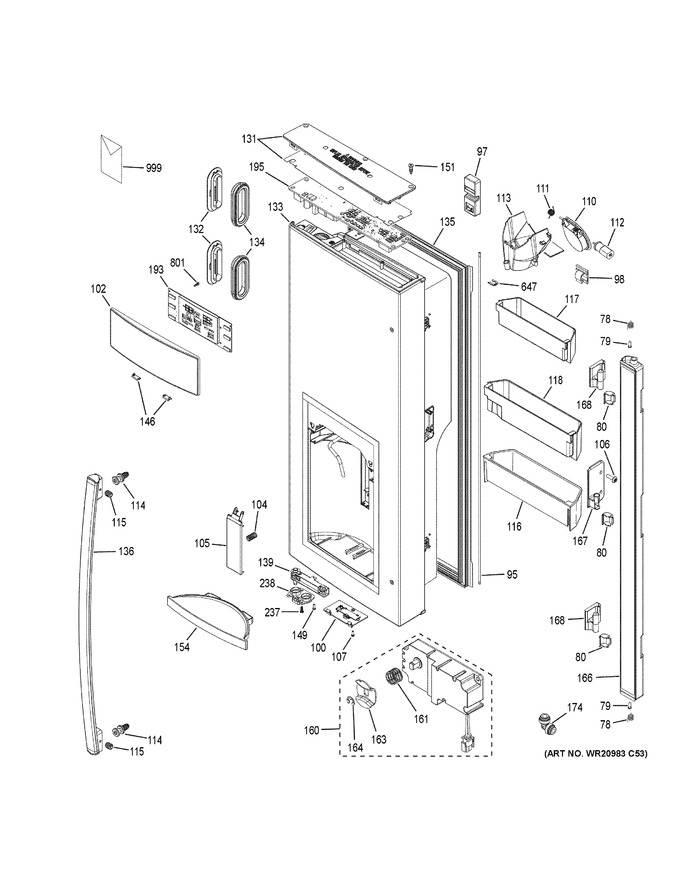

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 78 | WR01X11052 | Spring Hinge Mullion |  |
|||
| 79 | WR01X11053 | Sleeve Spring Mullion | |
|||
| 80 | WR02X13739 | Hinge Cap | |
|||
| 95 | WR02X21126 | Tube Pex Lh Door | |
|||
| 97 | WR02X13777 | Insert Funnel | |
|||
| 98 | WR01X11064 | Clip Phgl | |
|||
| 100 | WR55X23636 | Cover Led Fz Asm | |
|||
| 102 | WR17X26326 | Cap Touch Std Stainless | |
|||
| 104 | WR01X11027 | Spring | |
|||
| 105 | WR17X13060 | Cover Paddle Asm Ss | |
|||
| 106 | WR01X11054 | Scr 8-18 Flp 1/2 S | |
|||
| 107 | WR01X10196 | Screw 8-18 Hi/lo 5/8 | |
|||
| 110 | WR17X13057 | Duct Door Asm | |
|||
| 111 | WR01X11017 | Spring Duct Door | |
|||
| 112 | WR60X10344 | Motor Duct Door | |
|||
| 113 | WR17X13099 | Funnel Ice | |
|||
| 114 | WR01X11007 | Fastener Door Handle | |
|||
| 115 | WR01X11014 | Set Screw | |
|||
| 116 | WR71X24976 | Bin Door Ice Btm | |
|||
| 117 | WR71X11045 | Bin Ice Door Top Lh | |
|||
| 118 | WR71X11046 | Bin Ice Door Mid Lh | |
|||
| 131 | WR17X13205 | Pcb Cover Asm Dgy | |
|||
| 132 | WR14X25124 | Collar Port | |
|||
| 133 | WR78X26311 | Door Disp Ff Lh Ss | |
|||
| 134 | WR14X10364 | Port Gasket | |
|||
| 135 | WR14X10377 | Gasket Ff Dgy | |
|||
| 136 | WR12X23647 | Arc Handle Asm Ff | |
|||
| 139 | WR11X23034 | Closure Door Asm Lh | |
|||
| 146 | WR02X13655 | Shield Led Light | |
|||
| 149 | WR01X10196 | Screw 8-18 Hi/lo 5/8 | |
|||
| 151 | WR01X11028 | Scr 8-18 Flp 1/2 S | |
|||
| 154 | WR17X26325 | Drip Tray Stainless | |
|||
| 160 | WR60X10345 | Auger Motor Asm | |
|||
| 161 | WR02X13645 | Spring Clutch Am | |
|||
| 163 | WR02X13647 | Clutch Coupling Am | |
|||
| 164 | WR02X13648 | E Clip | |
|||
| 166 | WR17X13240 | Mullion Articulating Asm | |
|||
| 167 | WR13X10984 | Hinge Center Mullion | |
|||
| 168 | WR13X10985 | Hinge Mullion | |
|||
| 174 | WR02X13737 | Connector 90 Deg 5/16 | |
|||
| 193 | WR55X26258 | Pcb Asm Led Icon Ui | |
|||
| 195 | WR55X23065 | Pcb Asm Door Control | |
|||
| 237 | WR01X11032 | Scr 10-24 Ab Rnt 20 5/8 | |
|||
| 238 | WR02X13634 | Stop Door Rh/lh Asm | |
|||
| 647 | WR01X11041 | Quick Clip Connector 1/4 | |
|||
| 801 | WD02X10129 | 6-19 X 1/4 Torx Pan Head | |
|||
| 999 | 31-51962 | Pm Mini Manual Service | |
