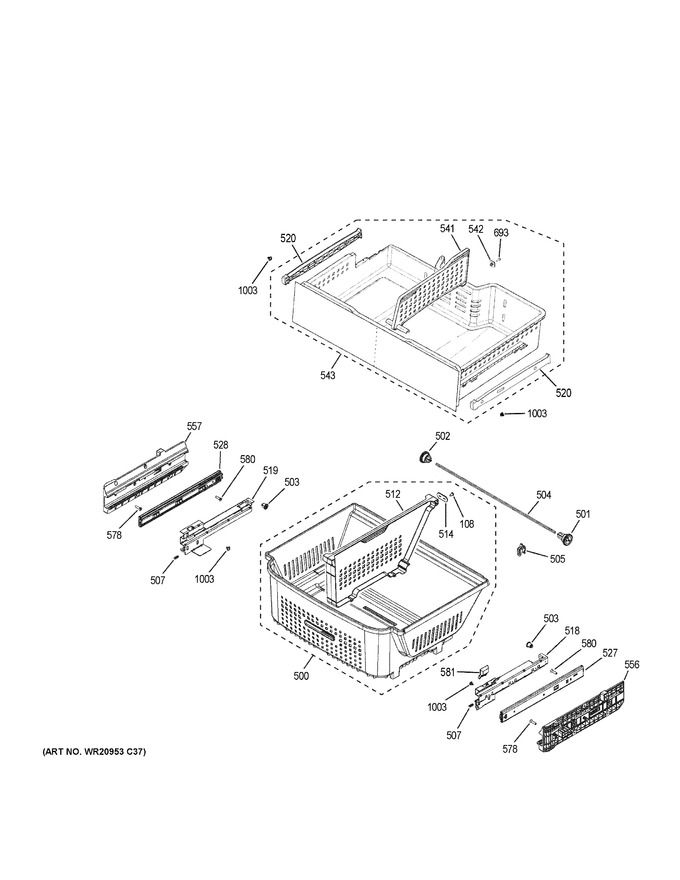

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 108 | WB1X5364 | Screw (cr) |  |
|||
| 500 | WR21X10249 | Basket Bottom Asm | |
|||
| 501 | WR02X13629 | Gear Lwr Drw Rh | |
|||
| 502 | WR02X13630 | Gear Lwr Drw Lh | |
|||
| 503 | WR02X13631 | Connnector Gear Pinion | |
|||
| 504 | WR02X13670 | Crossbar Pinion | |
|||
| 505 | WR01X11023 | Pin Cross Bar | |
|||
| 507 | WR01X11036 | Screw Set Door Fz | |
|||
| 512 | WR02X13661 | Divider Bottom Basket Fz | |
|||
| 514 | WR02X13674 | Support Slide Fz | |
|||
| 518 | WR17X13144 | Slide Bracket Asm Rh | |
|||
| 519 | WR17X13145 | Slide Bracket Asm Lh | |
|||
| 520 | WR72X27635 | Glide Support Lh & Rh | |
|||
| 527 | WR72X10427 | Slide Lower Fz Rh | |
|||
| 528 | WR72X10428 | Slide Lower Fz Lh | |
|||
| 541 | WR02X13705 | Divider Basket Upper Fz | |
|||
| 542 | WR02X13706 | Stopper Divider Fz Upper | |
|||
| 543 | WR32X26289 | Basket Upper Asm | |
|||
| 556 | WR72X20645 | Holder Slide Fz Rh | |
|||
| 557 | WR72X20644 | Holder Slide Fz Lh | |
|||
| 578 | WR01X11012 | Scr 8-18 Ab Hxw 9/16 S | |
|||
| 580 | WR01X11013 | Scr 10-18 Flt20 3/4 S | |
|||
| 581 | WR02X13632 | Striker Light Switch | |
|||
| 693 | WR01X10593 | Scr 8-18 Ab Ihxw 3/4 S | |
|||
| 1003 | WR01X10618 | Scr 8-18 Tpt 1/4 | |
