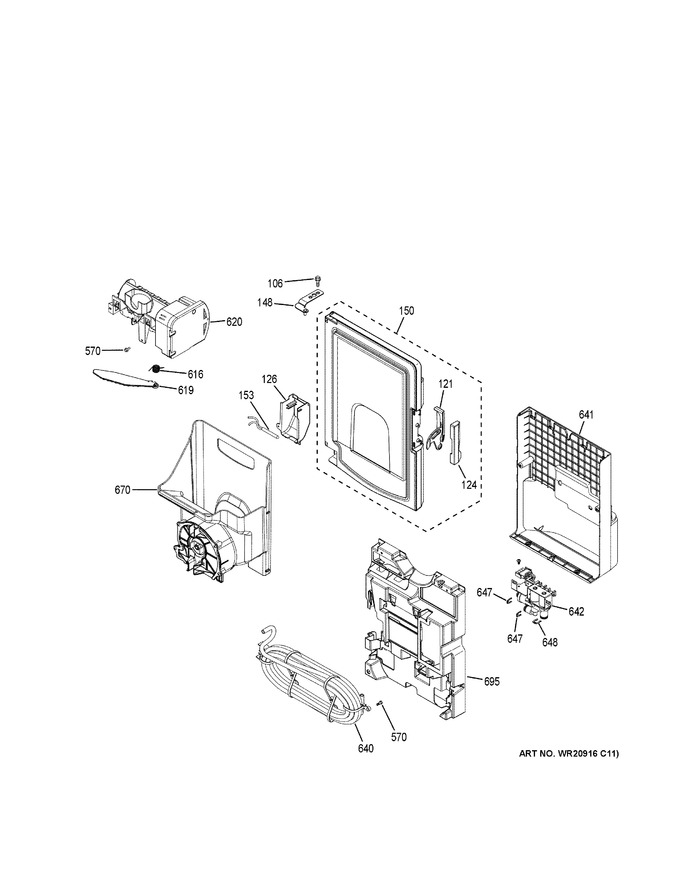

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 106 | WR01X11054 | Scr 8-18 Flp 1/2 S |  |
|||
| 121 | WR11X10031 | Latch Icebox Door | |
|||
| 124 | WR02X23032 | Cover Latch | |
|||
| 126 | WR17X13067 | Cover Am Im Harness | |
|||
| 148 | WR13X10972 | Hinge Top Door Icebox | |
|||
| 150 | WR78X25914 | Door Icebox Foam Asm | |
|||
| 153 | WR55X11142 | Sensor Temperature | |
|||
| 570 | WR1X1757 | Scr 8-18 Hxw 1 1/4s | |
|||
| 616 | WR29X10112 | Spring Feeler Arm | |
|||
| 619 | WR29X10110 | Arm Feeler Im | |
|||
| 620 | WR30X28681 | Icemaker | |
|||
| 640 | WR17X27627 | Coiled Cold Water Tank | |
|||
| 641 | WR02X28026 | Refrigertator Valve And Tank Cover | |
|||
| 642 | WR57X10098 | Valve Dual Water | |
|||
| 647 | WR01X11041 | Quick Clip Connector 1/4 | |
|||
| 648 | WR01X11040 | Quick Clip Conn 5/16 | |
|||
| 670 | WR30X10174 | Ice Bucket & Crusher | |
|||
| 695 | WR13X25912 | Housing Tray Valve Tank | |
