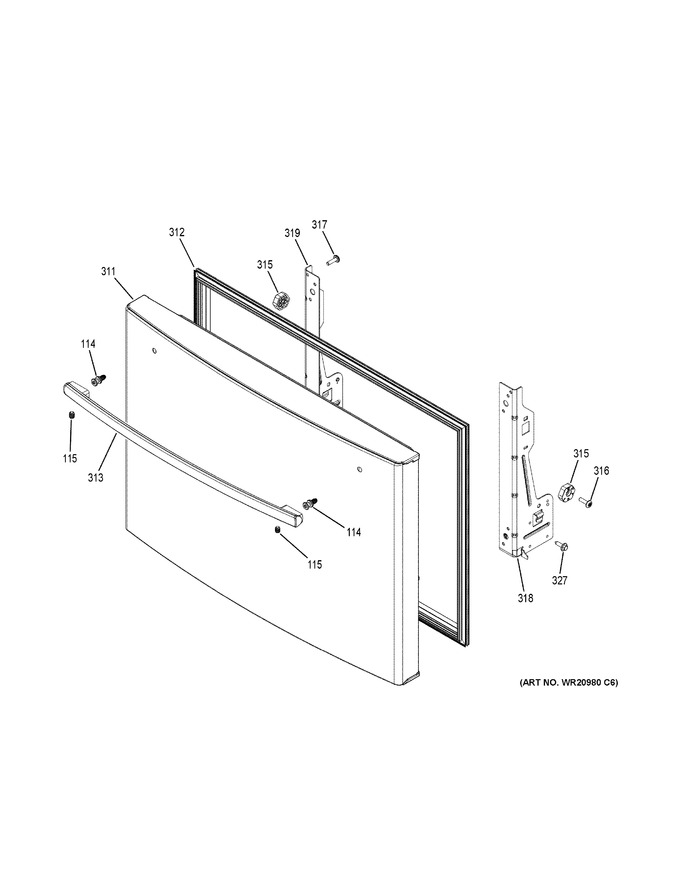

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 114 | WR01X11007 | Fastener Door Handle |  |
|||
| 115 | WR01X11014 | Set Screw | |
|||
| 311 | WR78X26296 | Door Foam Asm Fz Bowed | |
|||
| 312 | WR14X10376 | Gasket Fz Dgy Es | |
|||
| 313 | WR12X23646 | Arc Handle Asm Fz | |
|||
| 315 | WR02X13627 | Cam Vert Adjustment | |
|||
| 316 | WR01X11010 | Scr 1/4-20 Gx Trt 7/8 S | |
|||
| 317 | WR01X11049 | Scr 1/4-20 Hxw 7/8 S | |
|||
| 318 | WR02X25185 | Bracket Door Fz Rh | |
|||
| 319 | WR02X25184 | Bracket Door Fz Lh | |
|||
| 327 | WR01X11011 | Scr1/4-20 Hxw 3/4s | |
