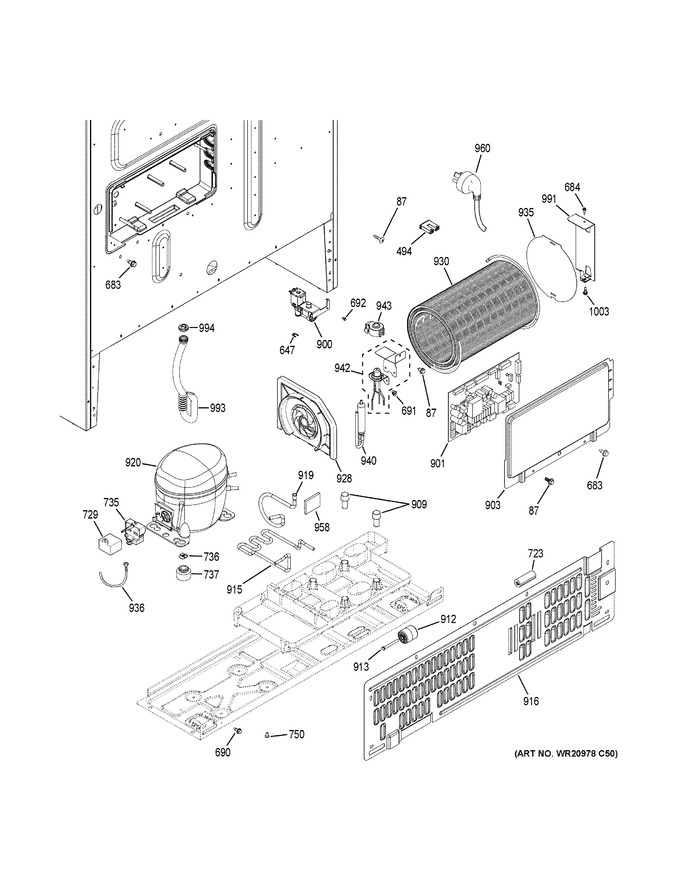

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 87 | WR01X10588 | Scr 8-18 Ab Ihxw 9/16 S |  |
|||
| 494 | WD1X1459 | Insulator Hsng Term | |
|||
| 647 | WR01X11041 | Quick Clip Connector 1/4 | |
|||
| 683 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S | |
|||
| 684 | WR01X10635 | Scr 8-32 Ca Ihxw .625 S | |
|||
| 690 | WZ05X0158 | Screw 8-32x3/8 Grd Scr | |
|||
| 691 | WR01X10897 | Scr 12-24tt Bht20 .700 S | |
|||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 | |
|||
| 723 | WR14X10055 | Grommet Tubing Slit | |
|||
| 729 | WR55X23731 | Capacitor 12 Uf | |
|||
| 735 | WR08X22874 | Tsd Combo | |
|||
| 736 | WR02X28299 | Compressor Mounting Clip | |
|||
| 737 | WR02X13719 | Grommet Compressor | |
|||
| 750 | WR01X28928 | Screw 10-32 Trt-20 1/2 S | |
|||
| 900 | WR57X27487 | Valve Water Iso Asm | |
|||
| 901 | WR55X29740 | Refrigerator Main Control Board | |
|||
| 903 | WR02X25126 | Cover Mainboard | |
|||
| 909 | WR02X13668 | Support Condenser | |
|||
| 912 | WR02X13685 | Wheel | |
|||
| 913 | WR01X11008 | Axle Wheel | |
|||
| 915 | WR84X29154 | Compressor Discharge Jumper Tube | |
|||
| 916 | WR82X27468 | Cover Access | |
|||
| 919 | WR84X27946 | Jumper Compressor Suction Tube | |
|||
| 920 | WR87X29155 | Refrigerator Compressor | |
|||
| 928 | WR60X23363 | Fan Gasket Asm | |
|||
| 930 | WR84X10115 | Condenser Asm Formed | |
|||
| 935 | WR17X13045 | Baffle Cond Air | |
|||
| 936 | WR23X10748 | Harness Ground | |
|||
| 940 | WR86X10089 | Dryer Filter | |
|||
| 942 | WR86X10094 | Valve Body Asm | |
|||
| 943 | WR86X10091 | Coil 3 Way Valve | |
|||
| 958 | WR02X13724 | Mastic Sound Deadening | |
|||
| 960 | WR23X24389 | Harness Power Cord | |
|||
| 991 | WR02X13622 | Bracket Condenser | |
|||
| 993 | WR02X28514 | Refrigerator Drain Tube | |
|||
| 994 | WR01X28515 | Refrigerator Drain Vacuum Break Valve | |
|||
| 1003 | WR01X10618 | Scr 8-18 Tpt 1/4 | |
