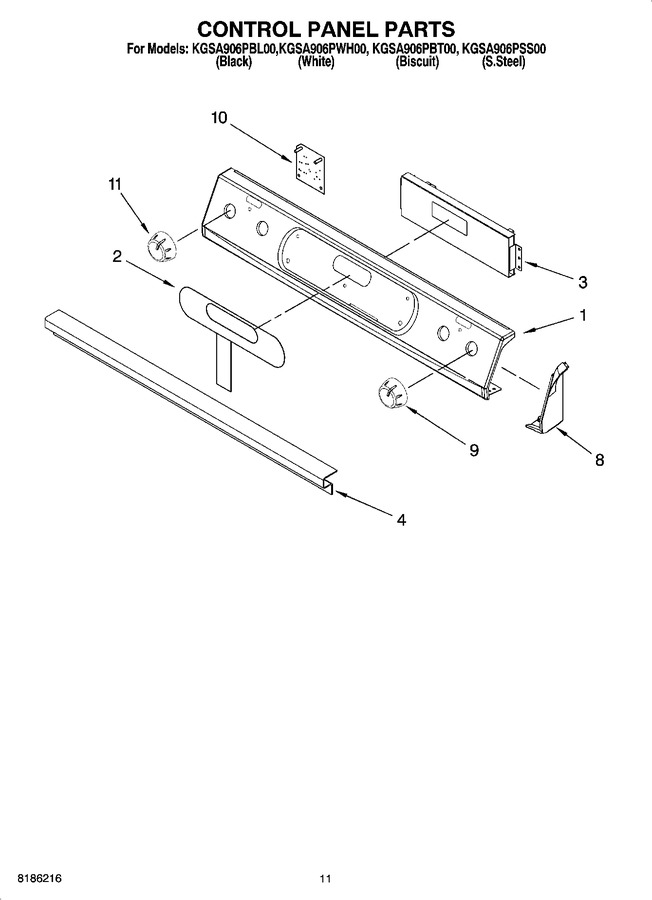

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 4453931BT | Control Panel (biscuit) |  |
|||
| WP4453931BL | Control Panel (black) | |
||||
| WP4453931SS | Control Panel (s.steel) | |
||||
| WP4453931WH | Control Panel (white) | |
||||
| 2 | 9756559WH | Membrane Switch (white) | |
|||
| WP9756559BT | Membrane Switch (biscuit) | |
||||
| WP3400832 | Membrane Switch (screw) | |
||||
| WP9756559ES | Membrane Switch (s.steel) | |
||||
| WP9756559BL | Membrane Switch (black) | |
||||
| 3 | WP9762810 | Control, Migration (Replaces:9760009) | |
|||
| W10873471 | Screw (Replaces:9780271) | |
||||
| 4 | 9757119 | Bracket, Console | |
|||
| 3179776 | Screw (3) | |
||||
| 8 | 4453727WH | Endcap (white Rh) | |
|||
| 4453727BL | Endcap (black Rh) | |
||||
| 9760456CM | Endcap (s.steel Rh) | |
||||
| 3196172 | Endcap (screw) | |
||||
| 9760457CM | Endcap (s.steel Lh) | |
||||
| 4453727BT | Endcap (biscuit Rh) | |
||||
| 4453726BL | Endcap (black Lh) | |
||||
| 4453726WH | Endcap (white Lh) | |
||||
| 4453726BT | Endcap (biscuit Lh) | |
||||
| 9 | 4453911WH | Knob (white) | |
|||
| 4453911BT | Knob (biscuit) | |
||||
| 8285604 | Knob (black) (Replaces:4453911BL) | |
||||
| 10 | WPW10331686 | Module, Spark (Replaces:9758080) | |
|||
| 11 | 4453912CM | Knob (meteorite) | |
|||
| 4453912BL | Knob (black) | |
||||
| 4453912WH | Knob (white) | |
||||
| 4453912BT | Knob (biscuit) | |
||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) | |
||||
| 242826 | Wire (14 Ga. 150 C White) | |
||||
| 242827 | Wire (14 Ga. 150 C Yellow) | |
||||
| 242832 | Wire (14 Ga. 200 C Yellow) | |
||||
| 9760526 | Harness, Wire (main) (Replaces:9756919) | |
||||
| 9756920 | Harness, Wire Bake/broil Ignit. | |
||||
| 9756554 | Harness, Wire | |
||||
| 9756921 | Harness, T.c.b. | |
||||
| 313660 | Clip, Ground Wire | |
||||
| 4448664 | Clamp | |
||||
| WP4449809 | Screw | |
||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) | |
||||
| WP112432 | Nut | |
||||
| 4450800 | Screw, Ground | |
||||
| 4452222 | Spacer, Harness | |
||||
| WP3400015 | Screw, Ground | |
||||
| 814381 | Hinge Pin Kit | |
||||
| WP4448950 | Screw, Install (4) | |
||||
| W11447673 | Anti-tip Assembly (Replaces:9782676) | |
||||
| 9757426 | Kit, Orifice | |
||||
| WP9757785WH | Filler, Counter Top (white) | |
||||
| WP9757785BL | Filler, Counter Top (black) | |
||||
| 242822 | Wire (14 Ga. 150 C Brown) | |
||||
| 9757785BT | Filler, Counter Top (biscuit) | |
||||
| 9757785SS | S.steel | |
||||
| W10624584 | Cord, Power (Replaces:9758677) | |
||||
| 242820 | Wire (14 Ga. 150 C Black) | |
||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) | |
||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White | |
||||
| 261900 | Paint, Spray (citrine White) | |
||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces:830864) | |
||||
| 591014 | Adhesive Loctite (1/3 Oz.) | |
||||
| WP482338 | Sealer, Silastic (3 Oz.) | |
||||
| 8316784 | Wire (14 Ga. 200 C Brown) (Replaces:242830) | |
||||
| 242828 | Wire (12 Ga. 150 C Black) | |
||||
| 242821 | Wire (14 Ga. 150 C Blue) | |
||||
| 242823 | Wire (14 Ga. 150 C Green) | |
||||
| 242824 | Wire (14 Ga. 150 C Orange) | |
||||
| 242829 | Wire (12 Ga. 150 C Red) | |
||||
| 242825 | Wire (14 Ga. 150 C Red) | |
||||
| 242831 | Wire (14 Ga. 200 C Red) | |
