Diagram # Part Number Description Series Find a Video
1 WP3400832 Trim, Side (left Hand) (screw) Find a Video
9756619WH Trim, Side (right Hand) (white) Find a Video
9756619BT Trim, Side (right Hand) (biscuit) Find a Video
9756619BL Trim, Side (right Hand) (black) Find a Video
9756619SS Trim, Side (right Hand) (s.steel) Find a Video
9756620WH Trim, Side (left Hand) (white) Find a Video
9756620BT Trim, Side (left Hand) (biscuit) Find a Video
9756620BL Trim, Side (left Hand) (black) Find a Video
9756620SS Trim, Side (left Hand) (s.steel) Find a Video
2 8053971 Brace, Main Back Find a Video
3 WP4455606 Hinge Receiver (right) Find a Video
WP4455605 Hinge Receiver (left) Find a Video
4 4448520 Bumper, Door Find a Video
5 9757717 Insulation, Bottom Vent Find a Video
7 WP4449809 Screw Find a Video
8303099 Top, Chassis   (Replaces:4455865) Find a Video
8 4453761 Bracket, Vent Sprt Find a Video
9 W11233072 Screw   (Replaces:3196176) Find a Video
4453759 Tube, Vent Find a Video
10 4452165 Lens, Light Find a Video
11 WPW10734065 Oven Light Assy   (Replaces:4452368) Find a Video
12 WP4173175 Bulb, Light   (Replaces:4452166) Find a Video
13 WP4449743 Screw (4) Find a Video
9757732 Shield, Heat Find a Video
14 WP4449040 Screw Find a Video
WP4450118 Nut Find a Video
4455612 Frame, Front Find a Video
15 W10877014 Gasket, Door   (Replaces:4455382) Find a Video
16 4453951 Deflector, Vent Bottom Find a Video
17 4452152 Bracket, Mounting Find a Video
18 WP9757685 Guide, Side Panel Find a Video
20 8186387 Oven, Side Panel (black)   (Replaces:9781907PB) Find a Video
8186386 Oven, Side Panel (white)   (Replaces:9781907PW) Find a Video
8186388 Oven, Side Panel (biscuit)   (Replaces:9781907PC) Find a Video
22 WPW10195934 Latch, Motorized   (Replaces:8302474) Find a Video
WP4449154 Screw Find a Video
25 W10782197 Side, Chassis (r.h. & L.h.)   (Replaces:4455641) Find a Video
WP4449809 Screw Find a Video
26 9759762 Back, Chassis Find a Video
WP4449809 Screw Find a Video
29 WPW10131825 Sensor   (Replaces:4455636) Find a Video
WP4449154 Screw Find a Video
30 9756454 Bracket, Goc Find a Video
31 9760223 Slide, Goc   (Replaces:9756453) Find a Video
32 3179776 Screw Find a Video
W10083460 Slide. Goc   (Replaces:9756452) Find a Video
33 3179776 Screw Find a Video
WP9761594 Central, Appliance   (Replaces:9759562) Find a Video
37 WP8300802 Thermostat (tod) (temp.) Spst Find a Video
43 W10110534 Base, Chassis   (Replaces:4453981) Find a Video
9756637 Gasket Find a Video
49 WP4449154 Screw Find a Video
WP4448933 Retainer, Gasket Find a Video
50 WP4449809 Screw Find a Video
WP4451747 Cover-back Find a Video
54 W10116899 Vent, Bottom Upper (black)   (Replaces:9756481BL) Find a Video
WPW10116897 Vent, Bottom Upper (white)   (Replaces:9756481WH) Find a Video
9756481BT Vent, Bottom Upper (biscuit) Find a Video
WPW10160347 Vent, Bottom Upper (s. Steel)   (Replaces:9756481SS) Find a Video
55 W10153486 Vent, Bottom Lower (black)   (Replaces:9756485BL) Find a Video
9756817 Insulation, Wrap Find a Video
WPW10154789 Trim, Btm Vent (s.steel)   (Replaces:9756485SS) Find a Video
9756470 Insulation, Back Find a Video
WPW10153488 Trim, Btm Vent (white)   (Replaces:9756485WH) Find a Video
W10153487 Trim, Bottom Vent (biscuit)   (Replaces:9756485BT) Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

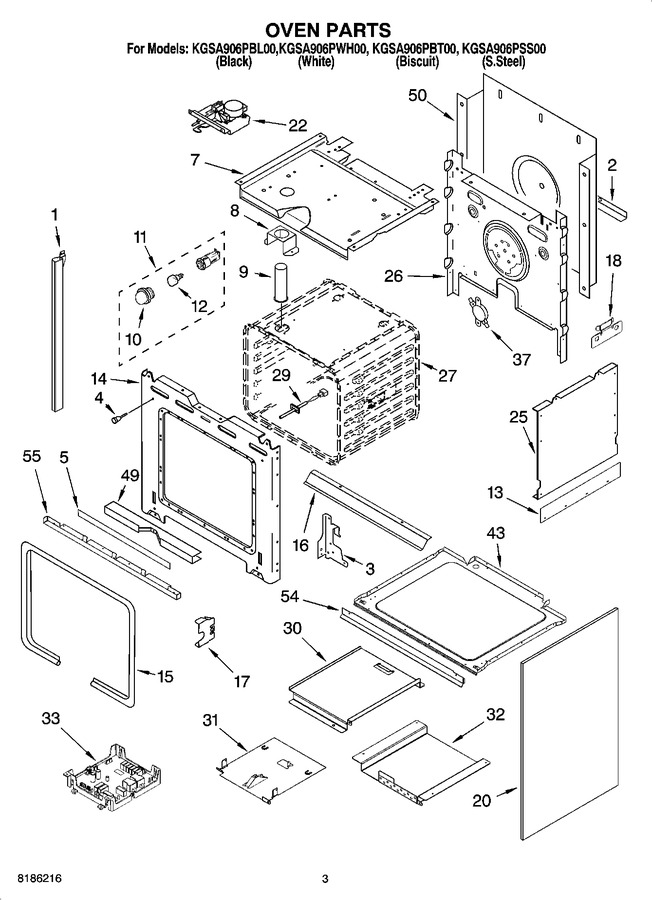

Diagram for KGSA906PSS00
