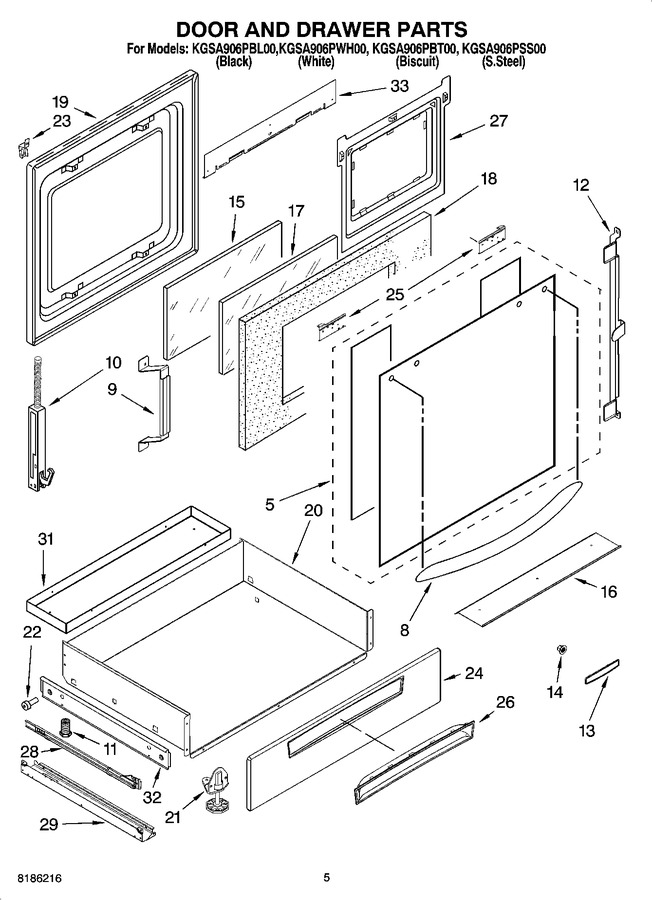

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 5 | 9757102BL | Glass, Door Front (black) |  |
|||
| WP9757102SS | Glass, Door Front (s.steel) | |
||||
| 9757102BT | Glass, Door Front (biscuit) | |
||||
| 9757102WH | Glass, Door Front (white) | |
||||
| 8 | 9756833OG | Handle, Door (s.steel) | |
|||
| 9756833BT | Handle, Door (biscuit) | |
||||
| 9756833WH | Handle, Door (white) | |
||||
| 9756833BL | Handle, Door (black) | |
||||
| 9 | 8302094 | Bracket, Central | |
|||
| 10 | WP9760579 | Hinge, Door (orange Rh) (Replaces:8300579) | |
|||
| WP9760574 | Hinge, Door (orange Lh) (Replaces:8300580) | |
||||
| 11 | WPW10058460 | Foot, Rear (Replaces:312701) | |
|||
| 12 | WP9759229 | Bracket, Side (Replaces:8302092) | |
|||
| 13 | 9757730BT | Nameplate (biscuit) | |
|||
| 9757730WH | Nameplate (white) | |
||||
| 9757730BL | Nameplate (black) | |
||||
| 14 | 4453107 | Nut | |
|||
| 15 | WP9757706 | Glass, Inner | |
|||
| 16 | 4457114 | Shield, Heat-bottom | |
|||
| 17 | WP4449263 | Glass, Inner (2) | |
|||
| 18 | WP4451722 | Insulation, Door | |
|||
| 19 | WP9759413 | Liner, Door (Replaces:4455618) | |
|||
| 20 | 9757806 | Drawer & Roller | |
|||
| 21 | WP4449743 | Screw | |
|||
| WP3196037 | Foot, Front | |
||||
| 22 | 814229 | Roller, Drawer (Replaces:422604) | |
|||
| 23 | WP4457132 | Retainer, Door (Replaces:9759743) | |
|||
| 24 | 4453799BT | Front, Drawer (biscuit) | |
|||
| 4453799WH | Front, Drawer (white) | |
||||
| 4453799BL | Front, Drawer (black) | |
||||
| 4453799SS | Front, Drawer (s.steel) | |
||||
| 25 | WP8533988 | Bracket, Handle (screw) | |
|||
| W10246114 | Bracket, Handle (r.hand) (Replaces:8301837) | |
||||
| W10246113 | Bracket, Handle (l.hand) (Replaces:8301838) | |
||||
| 26 | 9756952CM | Handle, Drawer (cashmere Metal) | |
|||
| 9756952WH | Handle, Drawer (white) | |
||||
| 9756952BT | Handle, Drawer (biscuit) | |
||||
| 9756952BL | Handle, Drawer (black) | |
||||
| 27 | WP4457132 | Retainer, Glass | |
|||
| 28 | 9756839 | Track, Drawer (l.side) | |
|||
| 9756837 | Track, Drawer (r.side) | |
||||
| 29 | 9759953 | Side, Base (r.side) | |
|||
| 9759954 | Side, Base (l.side) | |
||||
| 31 | W10588269 | Panel, Drawer (Replaces:9760591) | |
|||
| 32 | 9756673 | Guide, Roller | |
|||
| 33 | 9757707 | Shield, Heat Top | |
