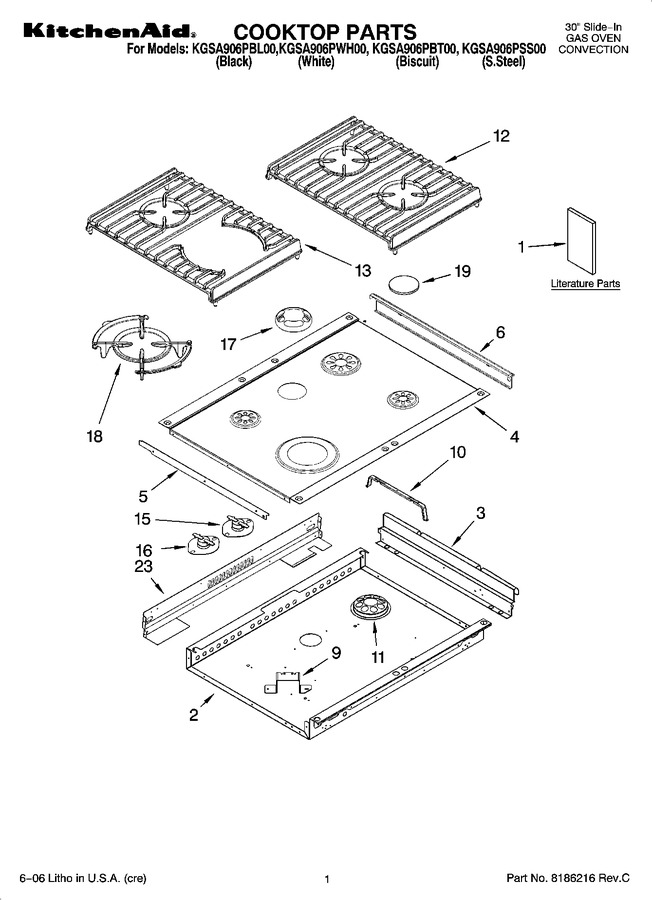

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 9757447 | Installation Instructions |  |
|||
| 3191638 | Safe Cooking Tips | |
||||
| 9757680 | Anti-tip Instruct. | |
||||
| 9757665 | Tech Sheet | |
||||
| 9757452 | Use & Care Guide | |
||||
| 2 | 9759896 | Burner Box | |
|||
| 3 | 4454023 | Bracket, Mounting | |
|||
| 3179776 | Screw | |
||||
| 4 | 9757803WH | Cooktop (white) | |
|||
| 9757803BL | Cooktop (black) | |
||||
| 9757803BT | Cooktop (biscuit) | |
||||
| 5 | 9756781WH | Wall, Side Cktp (white) | |
|||
| 3179776 | Wall, Side Cktp (screw) | |
||||
| 9756781BL | Wall, Side Cktp (black) | |
||||
| 9756781BT | Wall, Side Cktp (biscuit) | |
||||
| 6 | 4453875BL | Trim-cktop, Si (black Lh) | |
|||
| 4453875SS | Trim-cktop, Si (s.steel Lh) | |
||||
| 4453870WH | Trim-cktop, Si (white Rh) | |
||||
| 4453870BT | Trim-cktop, Si (biscuit Rh) | |
||||
| 4453870BL | Trim-cktop, Si (black Rh) | |
||||
| 4453870SS | Trim-cktop, Si (s.steel Rh) | |
||||
| 3179776 | Trim-cktop, Si (screw) | |
||||
| 4453875BT | Trim-cktop, Si (biscuit Lh) | |
||||
| 4453875WH | Trim-cktop, Si (white Lh) | |
||||
| 9 | WP12990527 | Screw (Replaces:3400843) | |
|||
| 3192811 | Bracket, Burner | |
||||
| 10 | WP4449809 | Screw (2) | |
|||
| WP9756821 | Support, Wiring | |
||||
| 11 | 9756505BL | Dome Cap, Vent | |
|||
| 12 | 9760230MS | Grate, Burner (moleskin) | |
|||
| 9760230BL | Grate, Burner (black) | |
||||
| 9760230CB | Grate, Burner (coal Black) | |
||||
| 9760230MG | Grate, Burner (mouse Grey) | |
||||
| 13 | 9760231MG | Grate, Brnr (tcb) (mouse Grey) | |
|||
| 9760231CB | Grate, Brnr (tcb) (coal Black) | |
||||
| 9760231BL | Grate, Brnr (tcb) (black) | |
||||
| 9760231MS | Grate, Brnr (tcb) (moleskin) | |
||||
| 15 | WP9757807 | Thermostat Spst (230) | |
|||
| 16 | W10491985 | Screw (2) (Replaces:3196160) | |
|||
| WP9759944 | Thermostat (140) | |
||||
| 17 | WP9760225BL | Vent, Center (black) (Replaces:9757766BL) | |
|||
| 9760225BT | Vent, Center (biscuit) (Replaces:9757766BT) | |
||||
| 9760225WH | Vent, Center (white) (Replaces:9757766WH) | |
||||
| 18 | WP9760222CB | Grate, Insert (tcb) (coal Black) | |
|||
| WP9760222BL | Grate, Insert (tcb) (black) | |
||||
| 9760222MG | Grate, Insert (tcb) (mouse Grey) | |
||||
| 9760222MS | Grate, Insert (tcb) (moleskin) | |
||||
| 19 | WP3191898MS | Cap, Burner 6k (rf, Lr) (moleskin) | |
|||
| WP8284669 | Cap, Burner 6k (rf, Lr) (coal Black) | |
||||
| 3191904MS | Cap, Burner 12.5k (rr) (moleskin) | |
||||
| WP3191905 | Cap, Burner 12.5k (rr) Mouse Grey | |
||||
| WP3191904 | Cap, Burner 12.5k (rr) Black | |
||||
| WP4456536 | Cap, Burner 12.5k (rr) (coal Black) | |
||||
| WP3191898 | Cap, Burner 6k (rf, Lr) (black) | |
||||
| WP3191899 | Cap, Burner 6k (rf, Lr) Mouse Grey | |
||||
| 23 | 9759627 | Cover, Cktp Rear | |
|||
| 3179776 | Screw (4) | |
