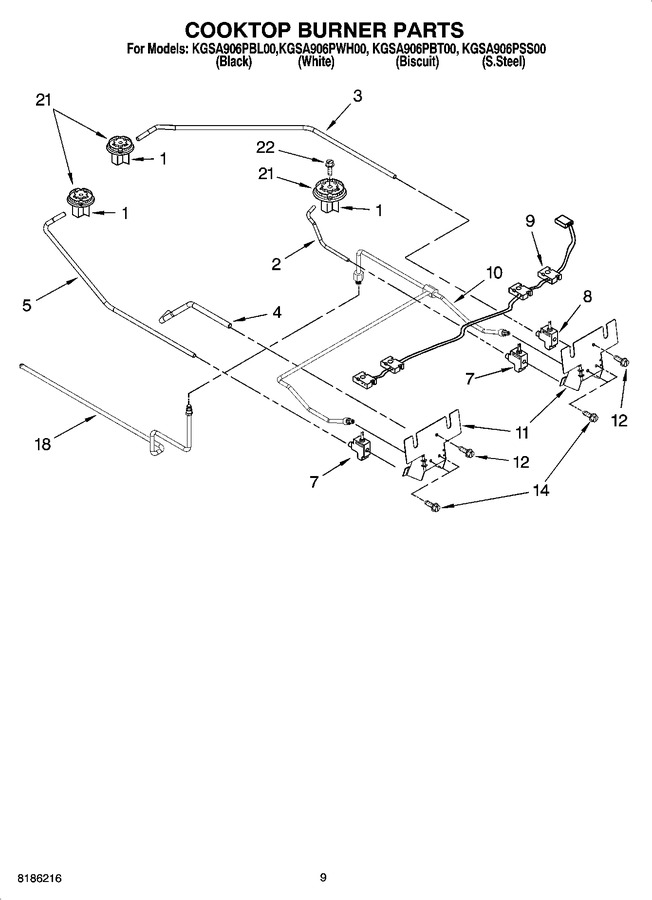

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WP9782447 | Burner Base W/orifice (small (2)) | ||||
WPW10244714 | Burner Base W/orifice (large) (Replaces:9782448) | |||||
2 | 4453747 | Tubing, Burner (rf) | ||||
3 | 4453748 | Tubing, Burner (rr) | ||||
4 | 4453752 | Tubing, Burner (lf) | ||||
5 | 4453749 | Tubing, Burner (lr) | ||||
7 | WP4456816 | Valve, Burner Small (2) | ||||
8 | WP4456817 | Valve, Burner Large | ||||
9 | WP9756824 | Spark Switch & Harness Assembly | ||||
10 | 4453755 | Tube, Manifold | ||||
11 | 3179776 | Screw | ||||
4453753 | Manifold | |||||
14 | WP3186217 | Bolt, Valve (4) (Replaces:8523704) | ||||
18 | 4453754 | Tubing Gds To Manifold | ||||
21 | WP4455981 | Head, Burner (large) | ||||
WP4455849 | Head, Burner (turbi) | |||||
9759894 | Head, Burner (small) | |||||
22 | WP3368921 | Screw, 7-18 X .750 |
