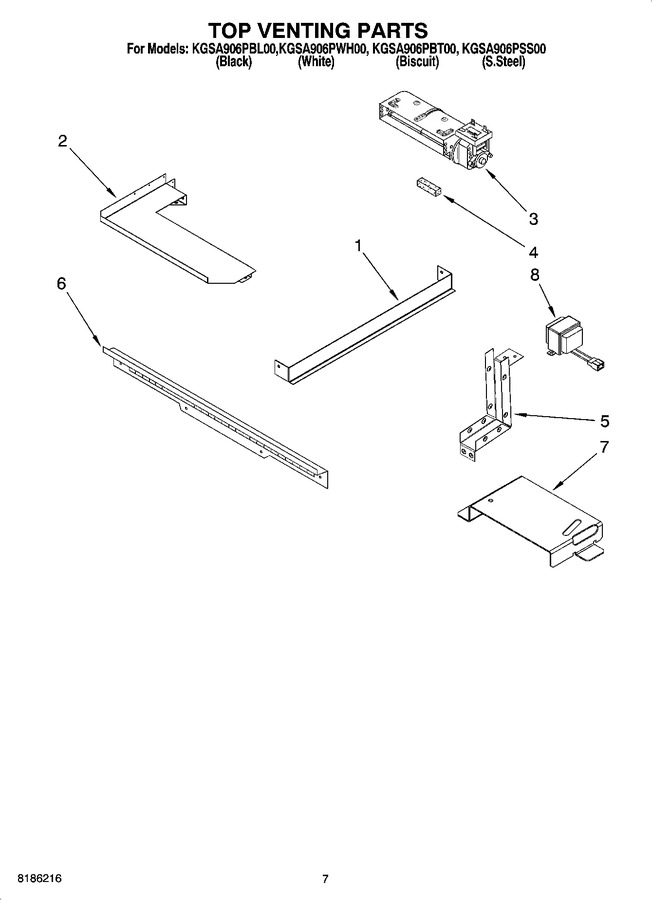

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 9758810 | Front, Air Duct | ||||
WP4449040 | Screw, 8-18 X 3/8 | |||||
2 | 9757827 | Top, Air Duct (l.hand) | ||||
9757828 | Top, Air Duct (r.hand) | |||||
3 | W10810687 | Blower (Replaces:8300223) | ||||
WP4455352 | Bracket | |||||
WP4449809 | Screw (4) | |||||
4 | W10491987 | Block, Foam (Replaces:4451758) | ||||
5 | 9756639 | Corner, Air Duct (r.hand) | ||||
9756638 | Corner, Air Duct (l.hand) | |||||
6 | 9757117BL | Vent, (control Panel) | ||||
WP4450038 | Screw | |||||
7 | WP9757829 | Bracket, Transfrmr | ||||
WP4449809 | Screw | |||||
8 | WP9756551 | Transformer | ||||
3179776 | Screw |
