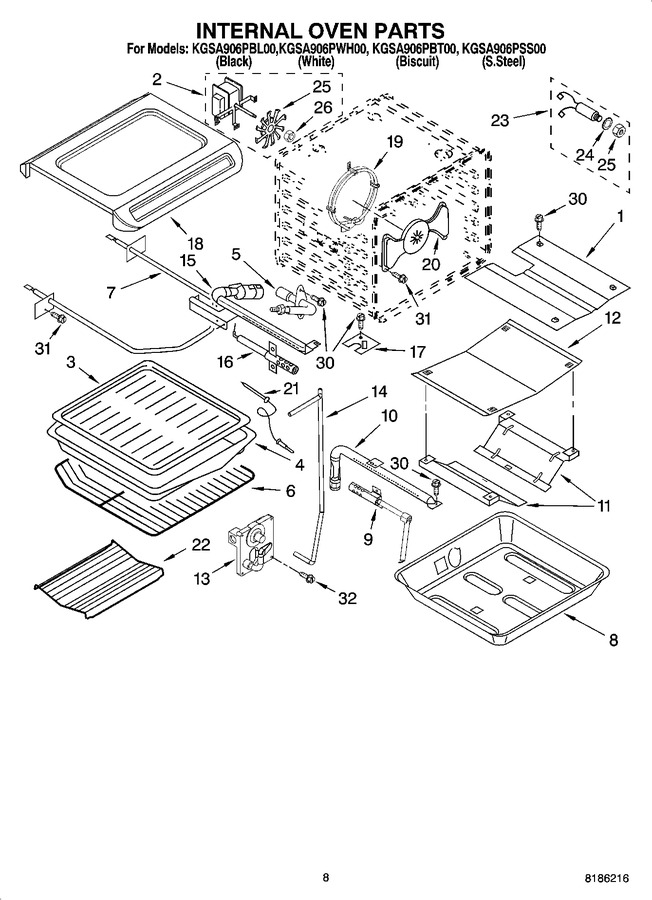

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W11233072 | Screw (Replaces:3196176) | ||||
9752980 | Shield, Flame | |||||
2 | WP4451583 | Assy, Fan | ||||
3 | WP3195996 | Grill, Broiler (Replaces:4457277) | ||||
4 | W10737569 | Pan, Broiler (Replaces:4457276) | ||||
5 | W11233072 | Screw (Replaces:3196176) | ||||
9757779 | Fitting, Broiler | |||||
6 | WPW10179152 | Rack, Oven (Replaces:4448717) | ||||
7 | WP4449154 | Screw | ||||
9760776 | Element, Broil (Replaces:4453625) | |||||
8 | WPW10145744 | Pan Support, Bake (Replaces:4453957) | ||||
9 | 3196385 | Screw | ||||
8191123 | Electrode, Bake (Replaces:4454048) | |||||
10 | 8191123 | Burner, Bake Log (Replaces:4454047) | ||||
W11233072 | Screw (Replaces:3196176) | |||||
11 | W11233072 | Screw (Replaces:3196176) | ||||
WP9752737 | Shield, Oven | |||||
12 | W11233072 | Screw (Replaces:3196176) | ||||
4453984 | Shield, Bake Flame | |||||
13 | 3400080 | Screw | ||||
WP9763716 | Valve, Assy (Replaces:4453999) | |||||
14 | 9756831 | Tube, Broil | ||||
15 | WPW10111219 | Burner, Broil (Replaces:9757700) | ||||
16 | 3196385 | Screw | ||||
WP8054129 | Ignitor, Broil | |||||
17 | 4454009 | Cover, Ignitor | ||||
W11233072 | Screw (Replaces:3196176) | |||||
18 | WPW10272546 | Pan, Oven Bottom (Replaces:4453920) | ||||
19 | WP4449154 | Screw | ||||
4453650 | Element, Convect | |||||
20 | W10104790 | Cover, Fan (Replaces:9756689) | ||||
WP4449154 | Screw | |||||
21 | WP9755542 | Probe, Meat | ||||
22 | W10758127 | Rack, Roasting (Replaces:3181534) | ||||
23 | 8186589 | Jack, Meat Probe (Replaces:9755543) | ||||
24 | WP9755547 | Lockwasher | ||||
25 | WP9755546 | Nut |
