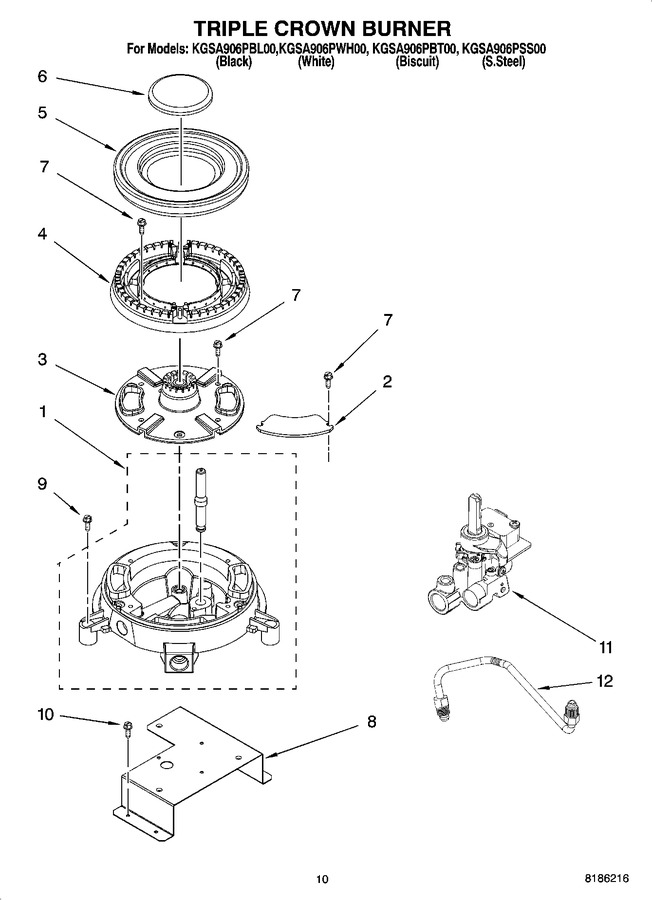

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP9763493 | Burner Assy., Triple Crown Brnr (Replaces:9756816) |  |
|||
| 2 | 8285250 | Plate, Closure | |
|||
| 3 | WP8285255 | Internal Head, Triple Crown Brnr | |
|||
| 4 | WP8285256 | External Head, Triple Crown Brnr | |
|||
| 5 | 8285258BL | Cap, Burner Ext. (black) | |
|||
| 8285258MS | Cap, Burner Ext. (moleskin) | |
||||
| 8285258MG | Cap, Burner Ext. (mouse Gray) | |
||||
| WP8285258 | Cap, Burner Ext. (coal Black) | |
||||
| 6 | WP9758829BL | Cap, Burner Int. (black) | |
|||
| 9758829MG | Cap, Burner Int. (mouse Gray) | |
||||
| WP9758829CB | Cap, Burner Int. (coal Black) | |
||||
| 9758829MS | Cap, Burner Int. (moleskin) | |
||||
| 7 | WP3400702 | Screw | |
|||
| 8 | 8285177 | Bracket, Triple Crown Burner | |
|||
| 9 | WP12990527 | Screw (Replaces:3400843) | |
|||
| 10 | WP3400702 | Screw | |
|||
| 11 | WP9760519 | Valve, T.c.b. (Replaces:9759636) | |
|||
| 12 | 4453751 | Tube, T.c.b. Gas | |
