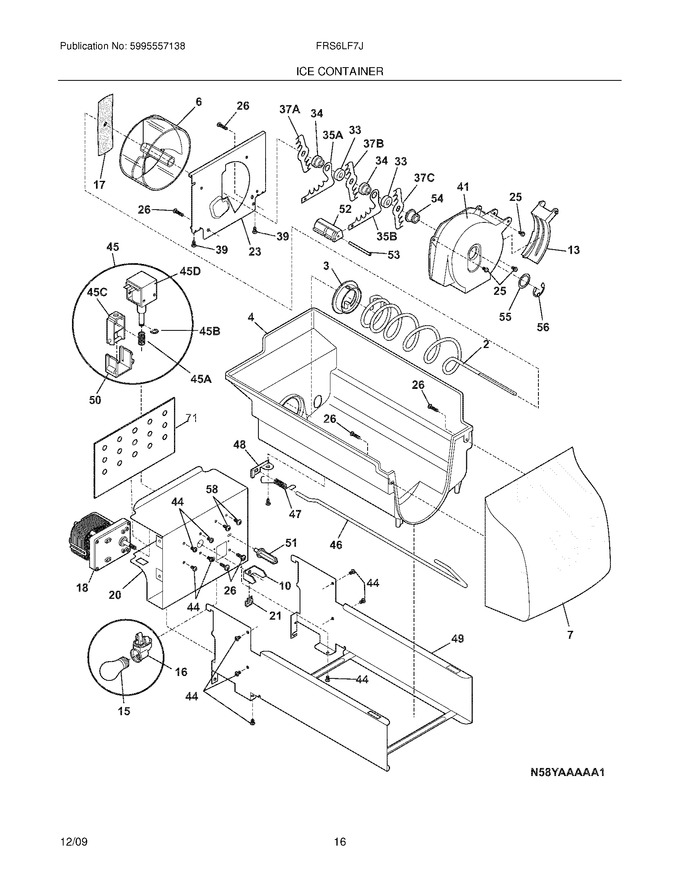

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 2 | 241716101 | Auger-ice |  |
|||
| 3 | 241685201 | Cam-drive | |
|||
| 4 | 241734001 | Container-ice,bucket Only | |
|||
| 6 | 241685101 | Drum-ice Disp | |
|||
| 7 | 241735301 | Front-ice Container | |
|||
| 10 | 241726501 | Bar-drive | |
|||
| 13 | 241885001 | Gate (Replaces:241685301) | |
|||
| 15 | 316538904 | Light Bulb (Replaces:241555401) | |
|||
| 16 | 241559801 | Socket-light | |
|||
| 17 | 241684503 | Drive Blade (Replaces:241684501) | |
|||
| F18 | 242221501 | Motor-auger,115v (Replaces:241676202) | |
|||
| 20 | 241734802 | Cover-motor | |
|||
| 23 | 241684001 | Plate-front | |
|||
| 25 | 240555002 | Screw,hex Washer Head ,8-32t X 0.375 (Replaces:241690701) | |
|||
| 26 | 215503205 | Screw,cr Pan Hd ,10-16 X 0.500 | |
|||
| 33 | 241684802 | Spacer (Replaces:241684801) | |
|||
| 34 | 241689802 | Spacer (Replaces:241689801) | |
|||
| 39 | 241690501 | Screw | |
|||
| 41 | 241885001 | Housing-crusher (Replaces:241685601) | |
|||
| 43 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 7/16 | |
|||
| 44 | 218359202 | Screw,pan Head ,8-32 X 0.250 | |
|||
| F45 | 241675704 | Solenoid Assy,115v (Replaces:241675701) | |
|||
| 46 | 241716002 | Control Rod | |
|||
| 47 | 241731801 | Spring-control Rod | |
|||
| 48 | 241684602 | Bracket-control Rod | |
|||
| 49 | 241734501 | Rail Assy | |
|||
| 50 | 241675601 | Guide-solenoid | |
|||
| 51 | 241676301 | Rotation Stop | |
|||
| 52 | 241684901 | Spacer-fixed Blades | |
|||
| 53 | 241690402 | Pin-spiral,fixed Blades | |
|||
| 54 | 241685001 | Nut-auger | |
|||
| 55 | 241690306 | Washer | |
|||
| 56 | 241690201 | E-ring | |
|||
| 35A | 241684303 | Fixed Blade,round (Replaces:241684301) | |
|||
| 35B | 241684203 | Fixed Blade,square (Replaces:241684201) | |
|||
| 37A | 241684107 | Blade,crusher No.1 (Replaces:241684101) | |
|||
| 37B | 241684108 | Blade,crusher No.2 (Replaces:241684102) | |
|||
| 37C | 241684109 | Blade,crusher No.3 (Replaces:241684103) | |
|||
| 45A | 241675902 | Spring-solenoid (Replaces:241675901) | |
|||
| 45B | 241676001 | E-ring-solenoid | |
|||
| 45C | 241676101 | Actuator-solenoid | |
|||
| F45D | 241675704 | Solenoid,115v (Replaces:241675801) | |
|||
| FNI | 241578401 | Wiring Harness,internal ,with Plug (Replaces:240352601) | |
|||
| NI | 241860801 | Ice Container Assy,w/moving Parts | |
