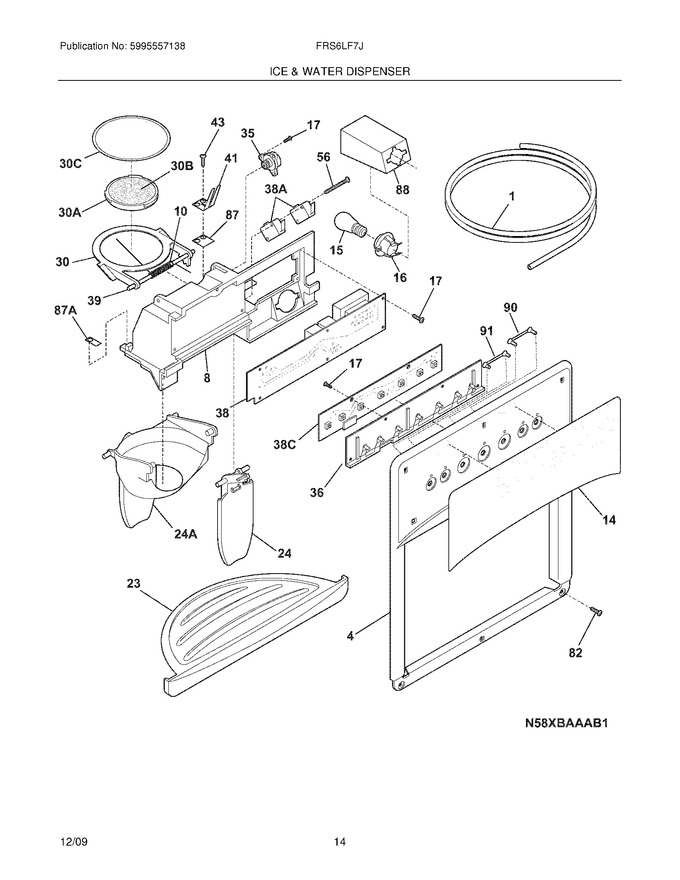

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube-water-door |  |
|||
| 4 | 241678703 | Cover-module,black | |
|||
| 8 | 241680507 | Module-dispenser | |
|||
| 10 | 241688901 | Spring-torsion | |
|||
| 14 | 240323998 | Label-module Cover,black | |
|||
| 15 | 241689401 | Light Bulb | |
|||
| 16 | 240548901 | Socket-light | |
|||
| 17 | 241679801 | Screw | |
|||
| 23 | 241649003 | Drip Tray,black | |
|||
| 24 | 241682003 | Actuator-water,black | |
|||
| 30 | 241688401 | Door Assy-ice Chute | |
|||
| 35 | 241689301 | Damper-rotary | |
|||
| 36 | 241680301 | Carrier | |
|||
| F38 | 241708202 | Board-power | |
|||
| 39 | 241688801 | Pin-hinge | |
|||
| 41 | 241689001 | Spring-actuator | |
|||
| 43 | 5304455699 | Screw,plask H/l ,no.6 X 3/8 (Replaces:215296301) | |
|||
| 56 | 241689201 | Screw-micro Switch,pan Head | |
|||
| 82 | 5304453707 | Screw,plask ,no.8-18 X .500 (Replaces:240363402) | |
|||
| 87 | 241688302 | Bearing Plate | |
|||
| 88 | 241686101 | Shield-light | |
|||
| 90 | 241680201 | Light Pipe,reflector ,long | |
|||
| 91 | 241680101 | Light Pipe,reflector ,short | |
|||
| 24A | 241681903 | Actuator-ice,black | |
|||
| 30A | 241688501 | Door Center | |
|||
| 30B | 241688601 | Insulation-door | |
|||
| 30C | 241688701 | Door Seal | |
|||
| F38A | 241689106 | Switch-micro,single Pole ,double Throw (Replaces:241689101) | |
|||
| F38C | 241708309 | Board-control | |
|||
| 241680002 | Harness-ribbon Cable (Replaces:241680001) | |
||||
| 87A | 241688301 | Bearing Plate | |
|||
| NI | 218976418 | Tube-water Inlet,inlet Valve ,to Filter | |
|||
| 218515403 | Clip-grille | |
||||
| 241686201 | Insulator-electrical | |
||||
| 5303918256 | Dispenser Heater Kit | |
||||
| 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker | |
||||
| 240552102 | Harness-wiring,door | |
||||
| 241850615 | Tube-water Inlet,inlet Valve ,to Filter (Replaces:218976915) | |
||||
| 218976419 | Tube-water Inlet,valve To Door | |
