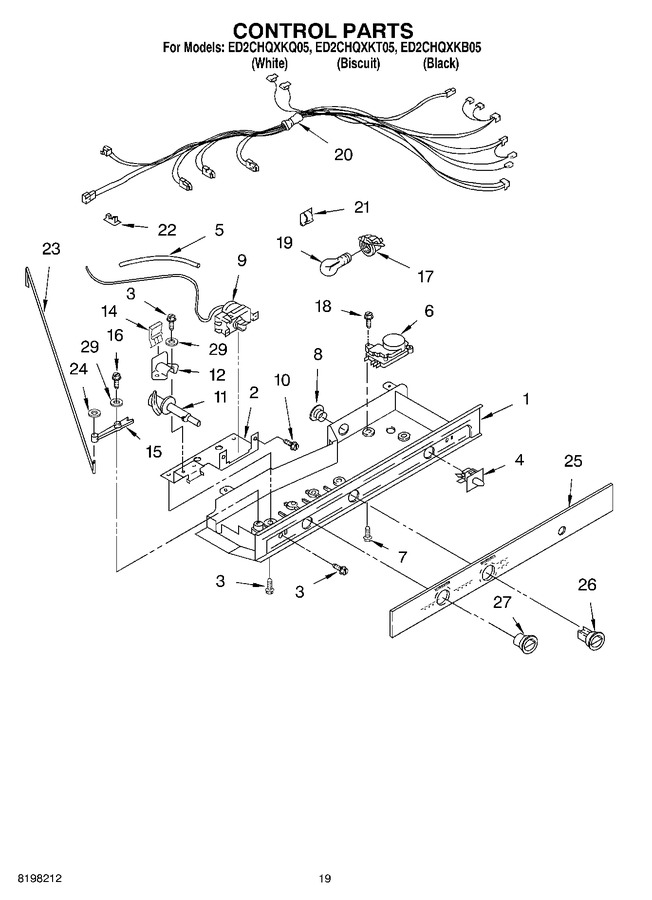

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 2200137 | Control Box | ![]() |
|||
2 | 1110629 | Mounting Bracket | ![]() |
|||
3 | WP3196557 | Screw (4) (Replaces:3196537) | ![]() |
|||
4 | WP2149705 | Light Switch | ![]() |
|||
5 | WP2196003 | Tube Barrier (Replaces:2196001) | ![]() |
|||
6 | W10822278 | Timer, Defrost (10 Hour) (Replaces:2188375) | ![]() |
|||
7 | 489392 | Screw (2) (Replaces:489398) | ![]() |
|||
8 | 940014 | Hole Plug | ![]() |
|||
9 | WP2198202 | Thermostat | ![]() |
|||
10 | WP965173 | Screw (Replaces:487869) | ![]() |
|||
11 | WP2182195 | Cam Assembly | ![]() |
|||
12 | 1110560 | Bearing Body | ![]() |
|||
14 | WP2196062 | Clip, Damper Control | ![]() |
|||
15 | W11256541 | Pivot Arm (Replaces:1110559) | ![]() |
|||
16 | 627068 | Screw | ![]() |
|||
17 | 4387478 | Light Socket (Replaces:2162085) | ![]() |
|||
18 | 489392 | Screw (Replaces:489398) | ![]() |
|||
19 | 8009 | Light Bulb (Replaces:527949) | ![]() |
|||
20 | 2311636 | Control Box Harness (Replaces:2206512) | ![]() |
|||
21 | WP1115374 | Clip, Wiring | ![]() |
|||
22 | 1115375 | Clip, Wiring | ![]() |
|||
23 | 1123960 | Connecting Rod | ![]() |
|||
24 | 489285 | Fastener, Push-on | ![]() |
|||
25 | 2255597 | Escutcheon, Control Box | ![]() |
|||
26 | 2182111 | Thermostat Knob | ![]() |
|||
27 | 2197871 | Knob, Air Control | ![]() |
|||
29 | 489203 | Spring Washer | ![]() |
|||
NI | 978883 | Enamel, Almond (1 Qt. Uncut) | ![]() |
|||
4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) | ![]() |
||||
WP1117510 | Torx Key | ![]() |
||||
N/A | Torx Screw Wrench | ![]() |
||||
WP4317852 | Cement, Alumilastic 1-1/4 Oz.) (Replaces:542639) | ![]() |
||||
WP542638 | Grease, Silicone (1/2 Oz.) | ![]() |
||||
WP503695 | Cork, Sealer 1/4 Pound) | ![]() |
||||
WP505587 | Sealer, Mastic (1 Qt.). | ![]() |
||||
876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) | ![]() |
||||
72032 | Paint, Touch-up 1/2 Oz. (black) | ![]() |
||||
WP72107 | Paint, Touch-up (1/2oz.) (almond) | ![]() |
||||
72017 | Paint, Touch-up 1/2 Oz. (white) | ![]() |
||||
4392901 | Paint, Pressurized Spray (12oz.) (biscuit) | ![]() |
||||
350956 | Enamel, Almond (12 Oz. Spray Can) | ![]() |
||||
799340 | Enamel, Black (1 Qt. Uncut) | ![]() |
||||
350942 | Primer, White (12 Oz. Spray Can) | ![]() |
||||
285006 | Enamel, Black (12 Oz. Spray Can) (Replaces:350939) | ![]() |
||||
350930 | Paint, Pressurized Spray (12 Oz.) White | ![]() |
||||
4392899 | Brush Touch-up Kit (biscuit | ![]() |
||||
212643 | Sealer, Gum (4 Feet) | ![]() |
||||
W11238399 | Tape, Vinyl 3/4 X 108``) (Replaces:479502) | ![]() |
||||
876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) | ![]() |
||||
511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) | ![]() |
||||
606755 | Bag, Insulation (36-5/8`` X 46``) | ![]() |
||||
799833 | Kit, Evaporator Repair (aluminum Epoxy) | ![]() |
||||
833938 | Kit, Terminal Connector | ![]() |
||||
WPW10312301 | Ice Container Assembly (Replaces:2209779) | ![]() |
||||
799344 | Paint, Bulk (1 Qt.) (white) (uncut) | ![]() |
