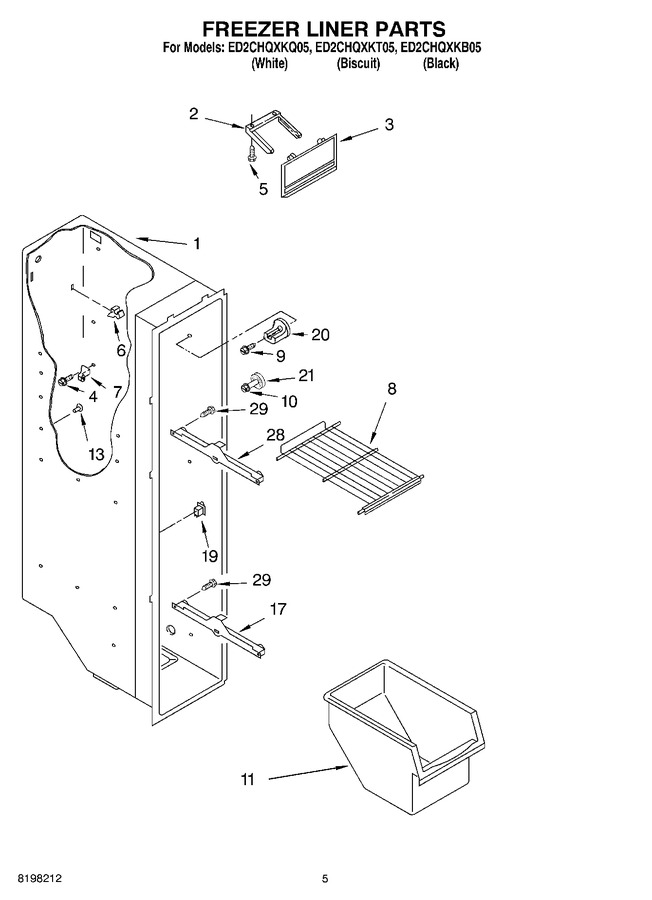

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | N/A | Liner (not A Seviceable Part) | ![]() |
|||
2 | 1115380 | Slide, Ice Door | ![]() |
|||
3 | 2171712 | Door, Ice Compartment | ![]() |
|||
4 | W10142289 | Screw (Replaces:3400893) | ![]() |
|||
5 | WP489478 | Screw | ![]() |
|||
6 | 2215823 | Clip, Air Duct (2) (Replaces:842534) | ![]() |
|||
7 | 4388405 | Support, Stud (4) (Replaces:2196206) | ![]() |
|||
8 | WP2174249K | Shelf (shelf, Small (1)) (Replaces:2174249) | ![]() |
|||
WP2174265K | Shelf (shelf, Large (2)) (Replaces:2174265) | ![]() |
||||
9 | W10142289 | Screw (Replaces:3400893) | ![]() |
|||
10 | WP3400806 | Screw (Replaces:8281158) | ![]() |
|||
11 | 2216111 | Freezer Bin | ![]() |
|||
13 | 2176134 | Grommet (4) | ![]() |
|||
17 | 8201602 | Slide, Freezer Bin (right Side) (Replaces:2181760) | ![]() |
|||
19 | W11457217 | Switch, Rocker Arm (Replaces:1115373) | ![]() |
|||
20 | WP2196207 | Stud, Rear | ![]() |
|||
21 | WP2196483 | Stud Assembly | ![]() |
|||
28 | W10845585 | Slide, Ice Container (left Side) (Replaces:1119237) | ![]() |
|||
1119293 | Slide, Ice Container (right Side) | ![]() |
||||
29 | 718257 | Screw (Replaces:489100) | ![]() |
