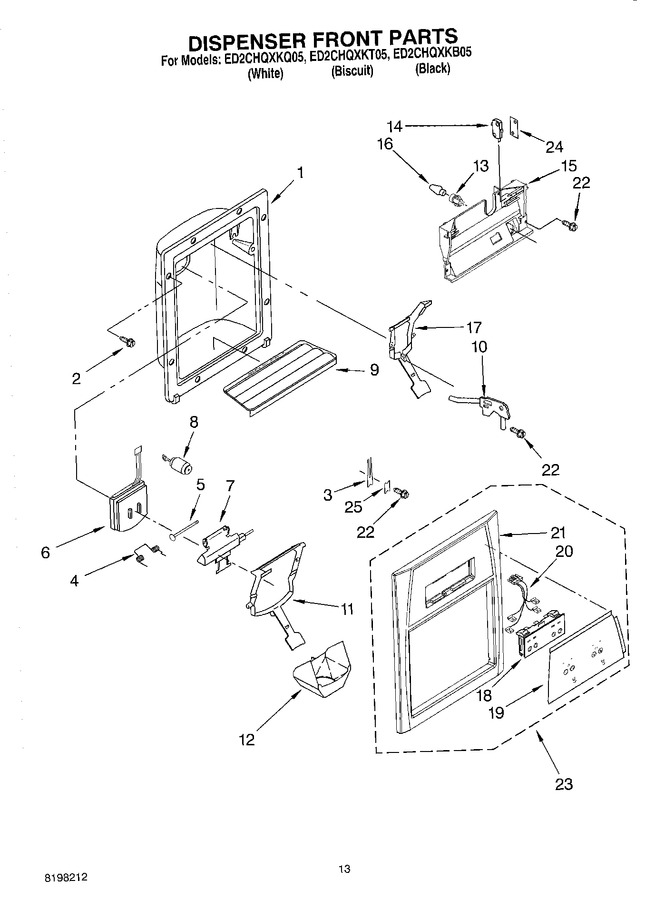

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | N/A | Housing, Dispenser (not Serviced) | ![]() |
|||
2 | WP3196175 | Screw (Replaces:3196165) | ![]() |
|||
3 | WP2194719 | Retainer, Levers | ![]() |
|||
4 | WPW10224328 | Spring, Torsion (Replaces:2180209) | ![]() |
|||
5 | WP2196195 | Pin | ![]() |
|||
6 | WP2180353 | Door, Ice (Replaces:2180352) | ![]() |
|||
7 | W10823377 | Door Mechanism Assembly (Replaces:2206423) | ![]() |
|||
8 | W10823377 | Mechanism Delay (Replaces:2205686) | ![]() |
|||
9 | WP2206671B | Grille, Overflow (black) | ![]() |
|||
WP2206671T | Grille, Overflow (biscuit) | ![]() |
||||
WP2206671W | Grille, Overflow (white) | ![]() |
||||
10 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces:2209718) | ![]() |
|||
11 | WP2255431B | Lever, Ice Dispenser (black) | ![]() |
|||
2255431T | Lever, Ice Dispenser (biscuit) | ![]() |
||||
WP2255431W | Lever, Ice Dispenser (white) | ![]() |
||||
12 | WP2180224 | Guide, Ice | ![]() |
|||
13 | 2180200 | Lamp Holder | ![]() |
|||
14 | WP2162361 | Switch (4) | ![]() |
|||
15 | WP2180226 | Bracket, Control (Replaces:2183771) | ![]() |
|||
16 | WP22002263 | Light Bulb (Replaces:3406124) | ![]() |
|||
17 | WP2255432B | Lever, Water Dispenser (black) | ![]() |
|||
WP2255432T | Lever, Water Dispenser (biscuit) | ![]() |
||||
WP2255432W | Lever, Water Dispenser (white) | ![]() |
||||
18 | N/A | Switch Assembly (not Available, Order 23) | ![]() |
|||
20 | 2187408 | Wire Assembly | ![]() |
|||
21 | N/A | Front Cover, Housing (not Available, Order 23) | ![]() |
|||
22 | WP3400906 | Screw (Replaces:489000) | ![]() |
|||
23 | 2255752B | Front Cover Assembly (includes Items 18, 19, 20 & 21) (white) (Replaces:2255741W) | ![]() |
|||
2255741T | Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit) | ![]() |
||||
2255741B | Front Cover Assembly (includes Items 18, 19, 20 & 21) (black) | ![]() |
||||
24 | WP625834 | Spacer, Switch (2) | ![]() |
|||
25 | WP2195051 | Strain Relief | ![]() |
