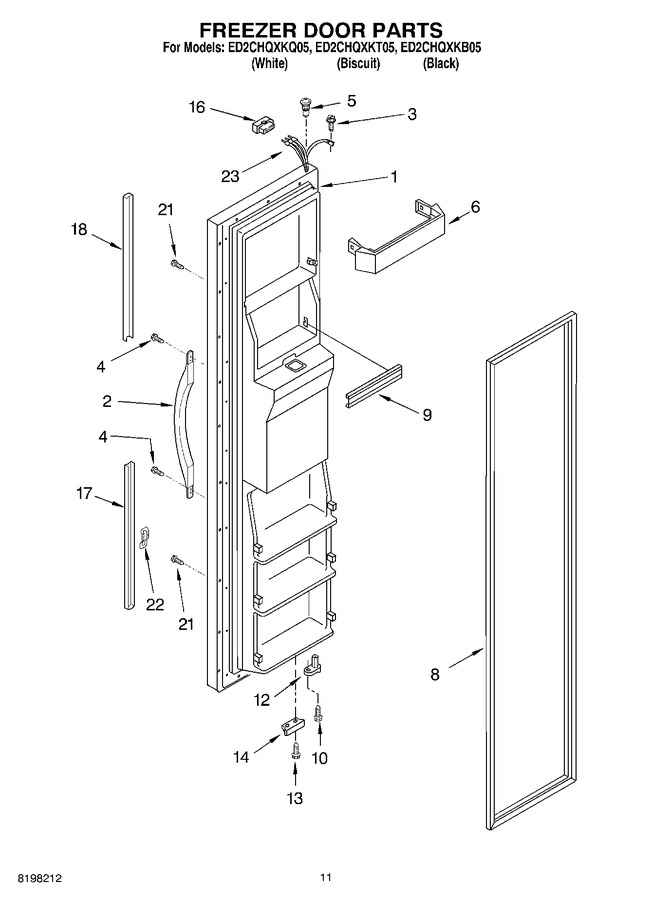

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 2255742W | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) | ![]() |
|||
2255742T | Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit) | ![]() |
||||
2255742B | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) | ![]() |
||||
2 | WP2186649B | Handle, Center (black) | ![]() |
|||
WP2186649W | Handle, Center (white) | ![]() |
||||
2186649T | Handle, Center (biscuit) | ![]() |
||||
3 | WP489128 | Screw (Replaces:8281149) | ![]() |
|||
4 | WP489491 | Screw | ![]() |
|||
5 | WP2182181 | Thimble, Top | ![]() |
|||
6 | WP2156021 | Trivet, Shelf (4) | ![]() |
|||
8 | 2159080 | Door Gasket, Magnetic (black) (Replaces:2221312) | ![]() |
|||
2159072 | Door Gasket, Magnetic (mist Beige) (Replaces:2221301) | ![]() |
||||
9 | WPW10307490 | Trim, Door Shelf (Replaces:2209680) | ![]() |
|||
10 | WP3400012 | Screw | ![]() |
|||
12 | WP2182179 | Door Closer, Upper Cam | ![]() |
|||
13 | WP489483 | Screw (Replaces:489420) | ![]() |
|||
14 | WP2206629B | Bracket, Door Stop (black) | ![]() |
|||
16 | WP2154473 | Connector | ![]() |
|||
17 | 2194969T | Extension, Bottom (biscuit) | ![]() |
|||
WP2194969B | Extension, Bottom (black) | ![]() |
||||
WP2194969W | Extension, Bottom (white) | ![]() |
||||
18 | 2194971T | Extension, Top (biscuit) | ![]() |
|||
WP2194971B | Extension, Top (black) | ![]() |
||||
WP2194971W | Extension, Top (white) | ![]() |
||||
21 | WP3400852 | Screw | ![]() |
|||
22 | WP2195327 | Clip (4) | ![]() |
|||
23 | 2311642 | Wire Assembly (Replaces:2206602) | ![]() |
