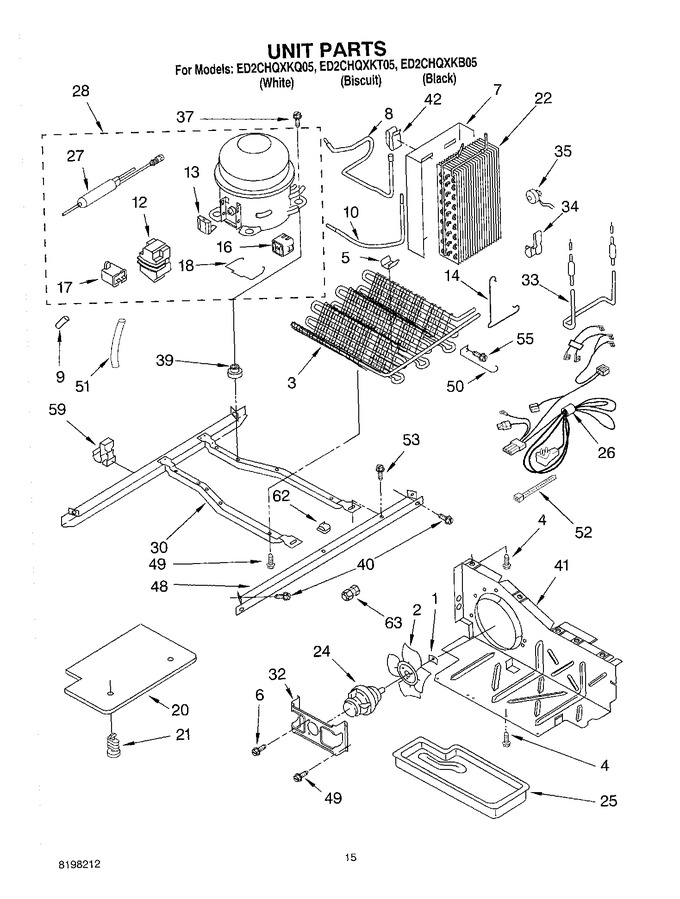

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | WP486692 | Speed Nut | ![]() |
|||
2 | WP2190685 | Fan, Blade | ![]() |
|||
3 | 8201683 | Condenser Assembly (Replaces:2204484) | ![]() |
|||
4 | WP489464 | Screw | ![]() |
|||
5 | W10683556 | Clip, Condenser (Replaces:2216914) | ![]() |
|||
6 | 681390 | Screw (Replaces:489099) | ![]() |
|||
7 | 2149293 | Heat Shield And Drain Pan | ![]() |
|||
8 | 2220642 | Tube Suction | ![]() |
|||
9 | WP2158826 | Dampner | ![]() |
|||
10 | 2255798 | Tube, Condenser To Heat Loop | ![]() |
|||
12 | WP2162358 | Cover (service Compressor Only) (Replaces:4387731) | ![]() |
|||
13 | 4387535 | Overload (service Compressor Only- Includes Relay) (Replaces:4387767) | ![]() |
|||
14 | WP2161324 | Clip, Defrost Heater | ![]() |
|||
16 | WP2188831 | Start-device, Combination (start Relay And Overload) For Production Compressor Only (Replaces:2220498) | ![]() |
|||
17 | WP4387764 | Capacitor ((production)) | ![]() |
|||
WP65889-4 | Capacitor (service) (Replaces:2255130) | ![]() |
||||
18 | 2255009 | Strap, Bale | ![]() |
|||
20 | 2182057 | Unit Cover, Bottom | ![]() |
|||
21 | 489396 | Clip | ![]() |
|||
22 | WP2188822 | Evaporator (Replaces:2164518) | ![]() |
|||
24 | W10124096 | Motor, Fan (Replaces:2188728) | ![]() |
|||
25 | WPW10614158 | Tray, Evaporator (Replaces:1105523) | ![]() |
|||
26 | 4389205 | Harness, Unit (Replaces:2187510) | ![]() |
|||
27 | W10843121 | Drier (Replaces:2199167) | ![]() |
|||
28 | W10309990 | Compressor (includes Items 12, 13, 17 & 27) (Replaces:2255010) | ![]() |
|||
30 | 2304903 | Unit Mounting Frame (Replaces:2160501) | ![]() |
|||
32 | WP2181929 | Bracket, Fan Motor | ![]() |
|||
33 | WP2323197 | Heater, Defrost (Replaces:2188174) | ![]() |
|||
34 | 2161330 | Clip | ![]() |
|||
35 | WPW10225581 | Bi-metal, Defrost (Replaces:2196155) | ![]() |
|||
37 | 4388295 | Screw (Replaces:489373) | ![]() |
|||
39 | WP4387558 | Grommet (4) (service) | ![]() |
|||
4388295 | Grommet (4) (production) (Replaces:1100826) | ![]() |
||||
40 | 489340 | Screw | ![]() |
|||
41 | WPW10196306 | Air Baffle (Replaces:2196202) | ![]() |
|||
42 | 2155547 | Clip, Heat | ![]() |
|||
48 | 2149718 | Unit Mounting Rail | ![]() |
|||
49 | W10651374 | Screw (Replaces:8281232) | ![]() |
|||
50 | 1105612 | Guard, Fan | ![]() |
|||
51 | 2162499 | Sleeve (Replaces:2161302) | ![]() |
|||
52 | WPW10339879 | Wire Tie (Replaces:2172840) | ![]() |
|||
53 | WP489427 | Screw | ![]() |
|||
55 | WP489478 | Screw | ![]() |
|||
59 | 2208280 | Clip, Wire & Tube | ![]() |
|||
62 | 934011 | Clip, Tube (3) | ![]() |
|||
63 | WP4373559 | Connector, Water Tube (Replaces:2209709) | ![]() |
|||
NI | WP978025 | Valve, Access (1/4``) | ![]() |
|||
978026 | Valve, Access (5/16``) | ![]() |
||||
978027 | Valve, Access (3/8``) | ![]() |
||||
978028 | Valve, Access (1/2) | ![]() |
||||
978029 | Valve Access (5/8``) | ![]() |
||||
978030 | Valve, Access (3/4``) | ![]() |
||||
876764 | Valve, Access(3/16``) | ![]() |
||||
N/A | Refrigerant Charge 5.0 Oz. (r-134) | ![]() |
