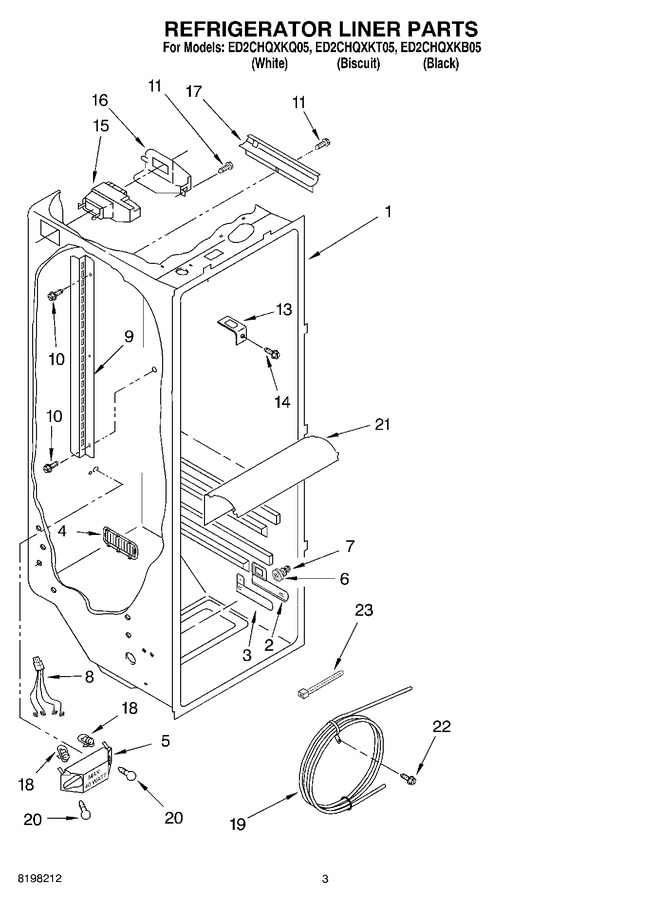

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | N/A | Liner (not A Serviceable Part) | ![]() |
|||
2 | 2194744 | Escutcheon, Meat Pan Control | ![]() |
|||
3 | 2182757 | Slide Meat Pan Control | ![]() |
|||
4 | 8201651 | Louver (Replaces:2182147) | ![]() |
|||
5 | 2256035 | Bracket, Dual Crisper Lights | ![]() |
|||
6 | W11223328 | Stud Assembly (Replaces:2196485) | ![]() |
|||
7 | WP3-24004-109 | Screw (Replaces:3400894) | ![]() |
|||
8 | 2311637 | Wire Harness, Dual Crisper Lights (Replaces:2256037) | ![]() |
|||
9 | 2206270 | Shelf Ladder | ![]() |
|||
10 | 487539 | Screw | ![]() |
|||
11 | W10759522 | Screw (2) (Replaces:486298) | ![]() |
|||
13 | WP2256085 | Bracket, Retainer (Replaces:1123919) | ![]() |
|||
14 | WP488488 | Screw (Replaces:489290) | ![]() |
|||
15 | WPW10151374 | Air Diffuser Assembly (Replaces:2209753) | ![]() |
|||
16 | 2152019 | Air Diffuser Cover | ![]() |
|||
17 | 2150331 | Cover, Conduit | ![]() |
|||
18 | 4387478 | Socket (Replaces:2162085) | ![]() |
|||
19 | WP2256126 | Reservoir (Replaces:2217199) | ![]() |
|||
20 | 8009 | Light Bulb (Replaces:527949) | ![]() |
|||
21 | WP2317782 | Light Lens (Replaces:2209769) | ![]() |
|||
22 | 798639 | Screw (2) (Replaces:488280) | ![]() |
|||
23 | WP2205813 | Strap | ![]() |
