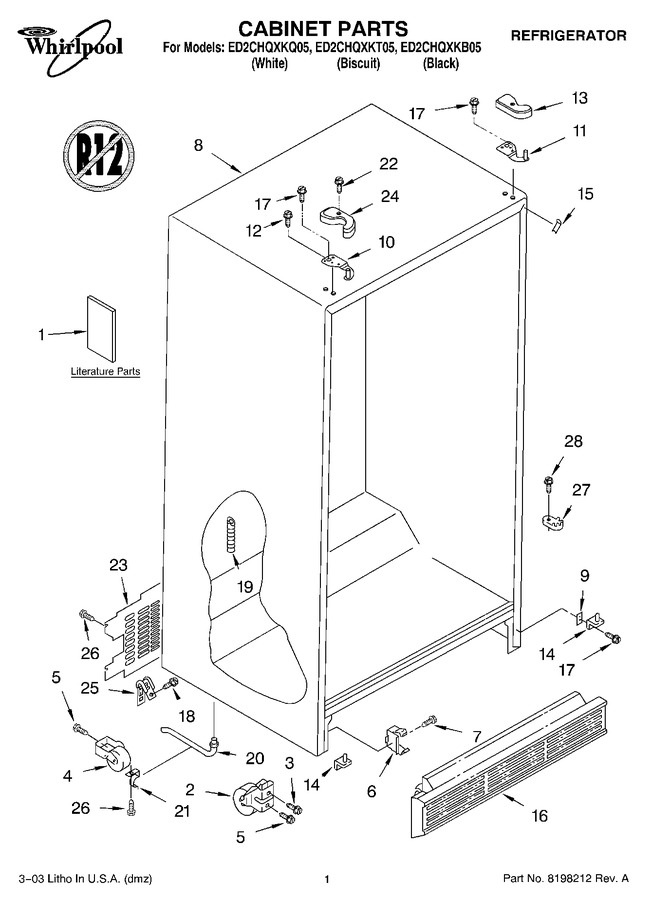

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | LIT2220699 | Literature Parts (use & Care Guide) | ![]() |
|||
LIT2255137 | Literature Parts (service & Wiring Sheet) | ![]() |
||||
LIT2220308 | Literature Parts (energy Guide) | ![]() |
||||
LIT628370 | Modular Icemaker Service Sheet | ![]() |
||||
2 | 4386774 | Front Roller (2) (Replaces:2174748) | ![]() |
|||
3 | W10850698 | Screw (Replaces:3400517) | ![]() |
|||
4 | WPW10250570 | Roller (rear) (2) (Replaces:2196236) | ![]() |
|||
5 | WP489427 | Screw | ![]() |
|||
6 | WP2155013 | Clip, Grille | ![]() |
|||
7 | WP489128 | Screw (Replaces:488500) | ![]() |
|||
9 | WP2209697 | Shim | ![]() |
|||
10 | WP2203770 | Hinge Top (fc) | ![]() |
|||
11 | WP2203771 | Hinge Top (rc) | ![]() |
|||
12 | WP489128 | Screw (Replaces:8281149) | ![]() |
|||
13 | WP2203408W | Hinge Cover (rc) (white) | ![]() |
|||
WP2203408B | Hinge Cover (rc) (black) | ![]() |
||||
2203408T | Hinge Cover (rc) (biscuit) | ![]() |
||||
14 | 8201707 | Hinge Bottom (2) (Replaces:2217075) | ![]() |
|||
15 | 2196094 | Filler, Wrapper (white) | ![]() |
|||
2196150 | Filler, Wrapper (biscuit) | ![]() |
||||
2196097 | Filler, Wrapper (black) | ![]() |
||||
16 | 2198469T | Grille (biscuit) | ![]() |
|||
W11167901 | Grille (white) (Replaces:2198469W) | ![]() |
||||
W10804014 | Grille (black) (Replaces:2198469B) | ![]() |
||||
17 | WP489497 | Screw | ![]() |
|||
18 | WP489464 | Screw | ![]() |
|||
19 | W11566763 | Drain Fitting (Replaces:940139) | ![]() |
|||
20 | WP1108438 | Tube, Extension | ![]() |
|||
21 | WP1108439 | Clip, Drain Tube | ![]() |
|||
22 | WP8281227 | Screw | ![]() |
|||
23 | WP2188756 | Cover, Unit (Replaces:2204202) | ![]() |
|||
24 | 2203407T | Hinge Cover (fc) (biscuit) | ![]() |
|||
WP2203407B | Hinge Cover (fc) (black) | ![]() |
||||
WP2203407W | Hinge Cover (fc) (white) | ![]() |
||||
25 | 549193 | Clamp-service Cord | ![]() |
|||
26 | 489084 | Screw | ![]() |
|||
27 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces:2155311) | ![]() |
|||
28 | WP489483 | Screw | ![]() |
