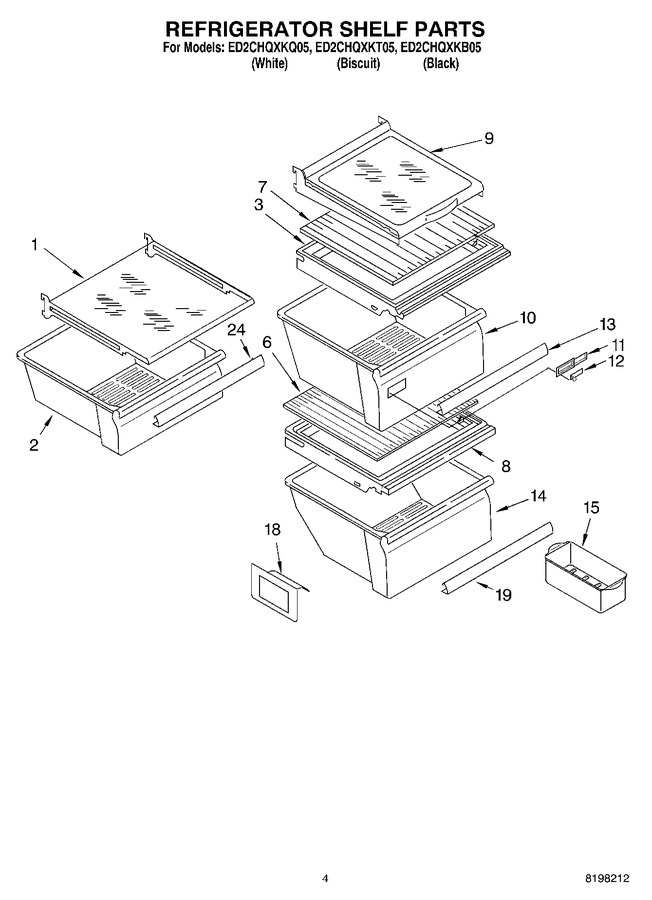

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP2211581 | Shelf, Snack Bin (Replaces:2206347) |  |
|||
| 2 | W11497323 | Snack Bin (Replaces:2196163) | |
|||
| 3 | W10508993 | Cover, Crisper (Replaces:2209698) | |
|||
| 6 | W10864399 | Glass, Cover (2) (Replaces:2179259) | |
|||
| 7 | W10864399 | Glass, Crisper Cover (Replaces:2174150) | |
|||
| 8 | 2217039 | Cover, Meat Pan | |
|||
| 9 | 2194281 | Shelf Assembly, Cantilever | |
|||
| 10 | WP2188656 | Crisper Pan (Replaces:2196160) | |
|||
| 11 | WP2179343 | Front, Crisper Pan | |
|||
| 12 | WP2179342 | Slide, Humidity Control | |
|||
| 13 | WP2179234 | Trim, Handle (Replaces:2255593) | |
|||
| 14 | WP2188664 | Meat Pan (Replaces:2196162) | |
|||
| 15 | W10136387A | Egg Bin (Replaces:2216624) | |
|||
| 18 | 2179350 | Deflector | |
|||
| 19 | WP2179234 | Trim, Handle (Replaces:2255592) | |
|||
| 24 | WP2179243 | Trim, Handle | |
