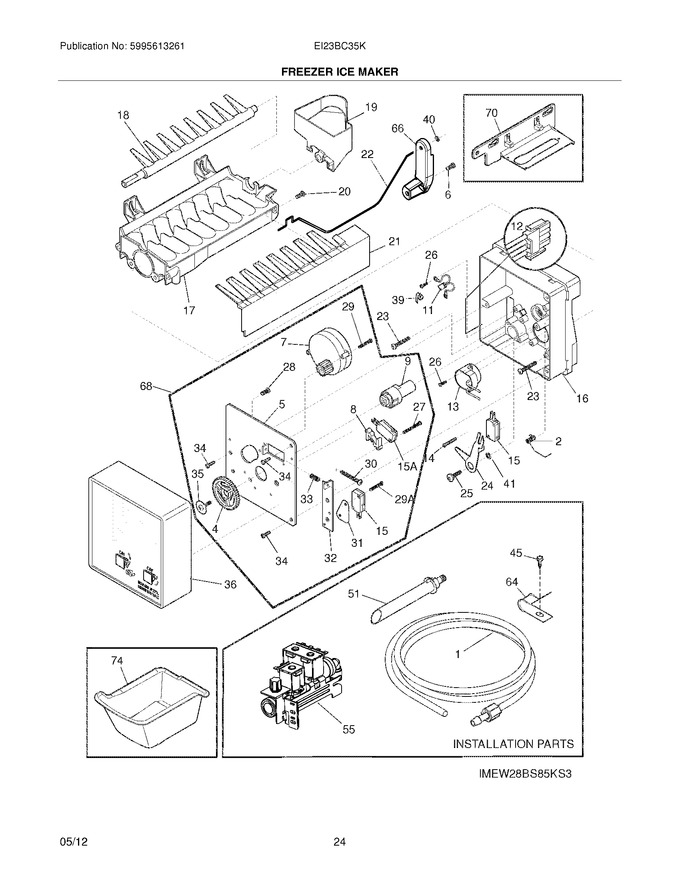

Diagram for 19 - Freezer Ice Maker
19 - Freezer Ice Maker

Diagram for 28 - Wiring Diagram
28 - Wiring Diagram

Diagram for 29 - Wiring Diagram
29 - Wiring Diagram


New Model Search:



Manufacturer: Frigidiare

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
1 218976435 Tube-water Inlet,5/16 - 59`` ,yellow ,cd Find a Video
2 5304469396 Spring-shutoff Arm,ice Maker Find a Video
4 5304469403 Gear Find a Video
5 5304469399 Mounting Plate Find a Video
6 5304455670 Screw-ground Wire,8-32 X 0.250   (Replaces:3206305) Find a Video
7 5304469407 Motor-ice Maker Find a Video
8 5304469404 Spacer-hold Switch Find a Video
9 5304469402 Cam Find a Video
F11 5304455695 Thermal Cutoff,ice Maker ,complete Assy Find a Video
F12 5304469390 Harness-wiring Find a Video
F13 5304469387 Thermostat Assy,ice Maker Find a Video
14 5304469394 Screw,no.5-24 X 3/4 Find a Video
F15 5304469388 Switch-micro,2 Find a Video
16 5304469379 Housing,control Find a Video
F17 5304469413 Mold-ice Maker,with Heater Find a Video
18 5304469384 Ejector-ice Find a Video
19 242051201 Cup-water Inlet,w/bearing Find a Video
20 5304469391 Screw,8-32 X 3/8 Find a Video
21 5304469378 Ice Stripper Find a Video
22 242051301 Shut-off Arm Find a Video
23 5304469392 Screw,mold-to-support ,(2) Find a Video
24 5304469382 Lever Arm Find a Video
25 5304469397 Screw,lever Arm/sprt Find a Video
26 5304469393 Screw Find a Video
27 5304469410 Screw,hold Switch Mtg ,(2) Find a Video
28 5304455670 Screw,no.8-32 X 1/4``   (Replaces:5304469414) Find a Video
29 5304469409 Screw Find a Video
30 5304469408 Screw-timing Adj,8-32 X 1.000 Find a Video
31 5304469389 Spacer-switch Find a Video
32 5304469400 Plate-valve Switch Find a Video
33 5304469401 Spring,timing Adjust Find a Video
34 5304469380 Screw,no.8-10x1/2 Find a Video
35 5304469411 Screw Find a Video
36 5304469385 Cover-ice Maker Find a Video
39 5304469383 Clamp Find a Video
40 5304458401 Clip-retainer Find a Video
41 5304469381 Washer,flat Find a Video
45 5303307980 Screw,hex Hd Wshr ,no.8-32 X 1/2   (Replaces:5304453923) Find a Video
51 5303918602 Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension   (Replaces:242169404) Find a Video
F55 242253002 Valve-water,4 Position ,115 V   (Replaces:242102201) Find a Video
64 5304455846 Clamp-cable   (Replaces:5304453921) Find a Video
66 242060701 Bracket-ice Maker,shut Off Arm Find a Video
68 5304469398 Mounting Plate,assy Find a Video
70 242053001 Bracket-ice Maker Find a Video
74 242128001 Container-ice Find a Video
F15A 5304469405 Switch-micro Find a Video
29A 5304469412 Screw,no.4-24 X 3/4`` Find a Video
FNI 5303918493 Ice Maker,radius Cube ,115 V ,service   (Replaces:241798219) Find a Video
NI 218709101 Screw,hex Head ,10-32 X 0.500 Find a Video
218976425 Tube-water Inlet,51.00`` ,brown/tan Find a Video
218976428 Tube-water,5/16 - 51`` ,natural Find a Video
241920106 Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension   (Replaces:241920104) Find a Video
241964705 Tube-water,1/4 - 24`` ,green Find a Video
5304515677 Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces:240383406) Find a Video
242039701 Screw Find a Video
241965906 Tube-water,5/16 - 67`` ,natural Find a Video
240396801 Clamp,tube/wiring ,nylon ,black/natural Find a Video
240555002 Screw,hex Washer Head ,8-32t X 0.375   (Replaces:241690701) Find a Video
241806601 Connector-water,straight ,5/16 To 5/16   (Replaces:242103001) Find a Video
5304469406 Insulator Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
  Move Mouse over Availability column to View Location Quantities-on-Hand

Diagram for EI23BC35KS3
