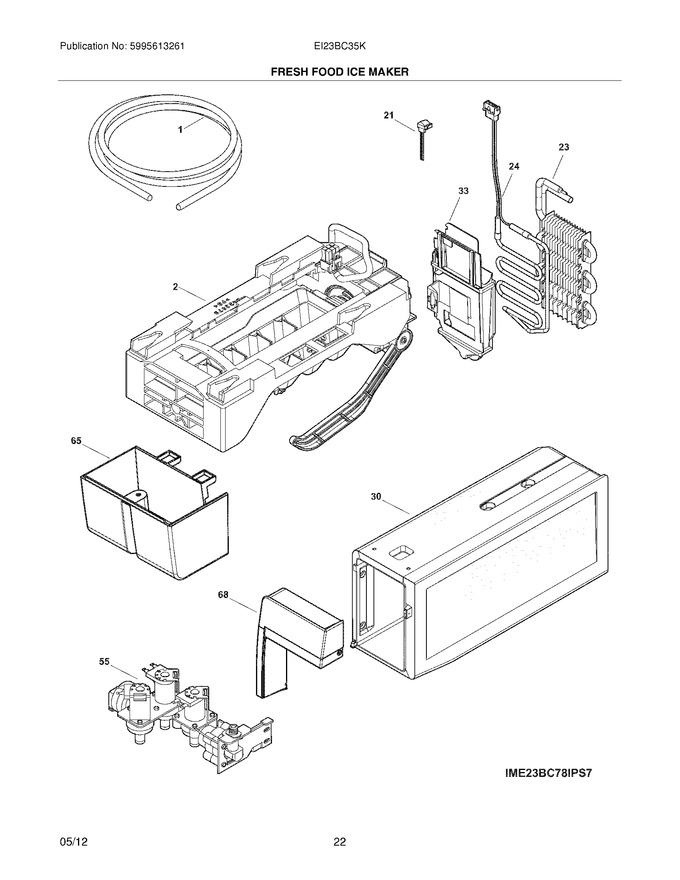

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet,5/16 - 59`` ,yellow ,cd |  |
|||
| F2 | 243297613 | Ice Maker,complete ,115 V (Replaces:243297603) | |
|||
| F21 | 5303918568 | Thermostat-defrost,defrost ,icemaker Evap | |
|||
| F23 | 242094603 | Evaporator,ice Maker | |
|||
| F24 | 242094802 | Heater-defrost | |
|||
| 30 | 242100402 | Cover,icmkr & Bucket (Replaces:242142202) | |
|||
| 33 | 5303918747 | Housing-evaporator (Replaces:242094401) | |
|||
| F55 | 242253002 | Valve-water,4 Position ,115 V (Replaces:242102201) | |
|||
| 65 | 242232701 | Cover-wiring (Replaces:242145902) | |
|||
| 68 | 242095002 | Cover,-front ,bucket Trim | |
|||
| NI | 5303918784 | Gasket,.4x .75x 16.00`` (Replaces:242124801) | |
|||
| 242095406 | Gasket | |
||||
| 218976425 | Tube-water Inlet,51.00`` ,brown/tan | |
||||
| 218709101 | Screw,hex Head ,10-32 X 0.500 | |
||||
| 240363602 | Screw-shoulder | |
||||
| 241953902 | Screw,no.8 - 18 X .380 ,3 | |
||||
| 240396801 | Clamp,tube/wiring ,nylon ,black/natural | |
||||
| 5303918484 | Chute-ice (Replaces:242105401) | |
||||
| 241641502 | Screw | |
||||
| 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces:242103001) | |
||||
| 241844403 | Tube-water,ice Mold Fill ,black ,extension | |
||||
| 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces:241920104) | |
||||
| 5303918446 | Heat Exchanger,icemaker | |
||||
| 241964705 | Tube-water,1/4 - 24`` ,green | |
||||
| 241965906 | Tube-water,5/16 - 67`` ,natural | |
||||
| 5303918602 | Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension (Replaces:242169404) | |
||||
| 218976428 | Tube-water,5/16 - 51`` ,natural | |
||||
| 241695906 | Screw,10-16ab X 0.50 | |
