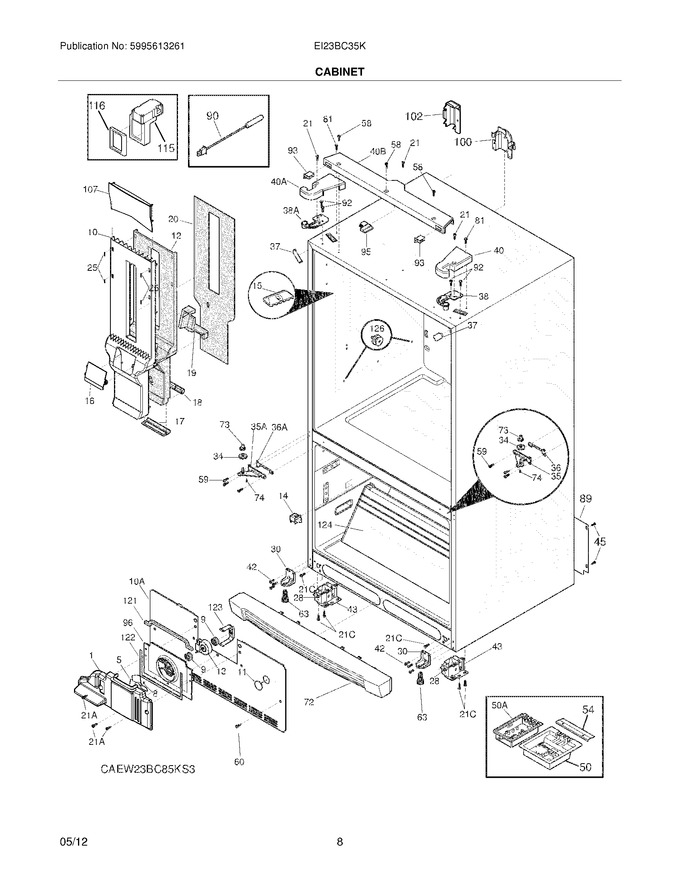

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 5304503130 | Cover-fan (Replaces:242099402) |  |
|||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan | |
|||
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft | |
|||
| 9 | 241518301 | Bushing,motor Mounting | |
|||
| 10 | 242058504 | Cover-air Duct | |
|||
| 11 | 5303208309 | Plug-hole, Factory Test | |
|||
| 12 | 242073901 | Foam-air Supply | |
|||
| F13 | 809069220 | Motor,evaporator Fan (Replaces:241509402) | |
|||
| F14 | 242060202 | Switch-light/lamp,frzr Door | |
|||
| F15 | 241891104 | Light-led | |
|||
| 16 | 242164401 | Cover-damper | |
|||
| 17 | 241928201 | Gasket-air Duct | |
|||
| 18 | 241928101 | Duct-air | |
|||
| 19 | 241871901 | Support-eps Damper | |
|||
| 20 | 242071823 | Cover-air Duct,rear (Replaces:241922902) | |
|||
| 21 | 241732101 | Screw,10-32 X 1/2 | |
|||
| 25 | 241949502 | Clip,air Vent | |
|||
| 28 | 5304499445 | Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special (Replaces:240335502) | |
|||
| 30 | 241778701 | Bracket-anti Tip | |
|||
| 34 | 241868301 | Washer,hinge ,nylon ,(2) | |
|||
| 35 | 241767211 | Hinge-lower,zinc ,rh | |
|||
| 36 | 241868201 | Spacer,door ,lower Rh | |
|||
| 37 | 242161206 | Trim-cabinet Corner,gray ,(2) (Replaces:240337616) | |
|||
| 38 | 241761301 | Bracket-upper Hinge,rh | |
|||
| 40 | 5304504483 | Cover-upper Hinge,grey ,rh (Replaces:241778009) | |
|||
| 42 | 240578902 | Screw,hex Head ,1/4-20 X 5/8 | |
|||
| 43 | 5304499445 | Roller Assy,front ,(2) (Replaces:240335006) | |
|||
| 45 | 241500303 | Screw,hex Washer Head ,8-18ab X 1/2 | |
|||
| F50 | 242115233 | Board-main Power | |
|||
| 54 | 241532401 | Channel | |
|||
| 58 | 241853202 | Screw | |
|||
| 59 | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces:240442706) | |
|||
| 60 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile | |
|||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable | |
|||
| 72 | 241930301 | Grille/kickplate | |
|||
| 73 | 242075701 | Cam-lower Hinge | |
|||
| 74 | 242026701 | Screw,no.6-32 X 9/16 | |
|||
| 81 | 134154100 | Screw,hex Head ,no.10-32 X 3/8 (Replaces:242025601) | |
|||
| 89 | 5304520905 | Cover-access,w/label (Replaces:241733905) | |
|||
| 90 | 240597203 | Sensor,(2) | |
|||
| 92 | 241710601 | Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg | |
|||
| F93 | 241835505 | Switch-light,grey | |
|||
| 95 | 241530501 | Sensor,humidity | |
|||
| 96 | 241860601 | Shroud-evap Fan Mtg | |
|||
| 100 | 242157601 | Cover,tubing ,eps Block | |
|||
| 102 | 242157501 | Cover,tubing ,eps Block | |
|||
| 107 | 241963101 | Duct-air,top | |
|||
| 115 | 5303918899 | Damper,motorized (Replaces:241518501) | |
|||
| 116 | 241518601 | Seal-damper,foam | |
|||
| 121 | 241860103 | Gasket-evap,upper | |
|||
| 122 | 241860102 | Gasket-evap,bottom | |
|||
| 123 | 242135301 | Clip,evap Fan Motor ,evap Fan Motor | |
|||
| 124 | 242006903 | Duct-air,freezer (Replaces:242006902) | |
|||
| 126 | 134549700 | Screw-shoulder (Replaces:242081301) | |
|||
| 10A | 241860402 | Cover-evap Coil,lower | |
|||
| F10A | 241860105 | Gasket-coil Cover | |
|||
| 241860104 | Gasket-coil Cover | |
||||
| 21A | 242015001 | Screw,8-18 X 1/2 | |
|||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 | |
|||
| 35A | 241767212 | Hinge-lower,zinc ,lh | |
|||
| 36A | 241868202 | Spacer,door ,lower Lh | |
|||
| 38A | 241761302 | Bracket-upper Hinge,lh | |
|||
| 40A | 5304504482 | Cover-upper Hinge,grey ,lh (Replaces:241778010) | |
|||
| 40B | 241862405 | Cover-upper Hinge,grey ,center | |
|||
| F40B | 242015901 | Harness-hinge Jumper,hinge Jumper | |
|||
| F50A | 241852501 | Clip,wiring Harness | |
|||
| 241891603 | Board-led Power . | |
||||
| FNI | 242119001 | Harness-wiring | |
|||
| 242045501 | Harness-wiring | |
||||
| NI | 241969001 | Cap,screw | |
|||
| 241859801 | Cover-eps,damper | |
||||
| 241810104 | Seal,housing | |
||||
| 242004802 | Foam-strip | |
||||
| 240494001 | Plug,button ,cab Liner Holes (Replaces:240479601) | |
||||
| 241953904 | Screw,no.8-18 | |
