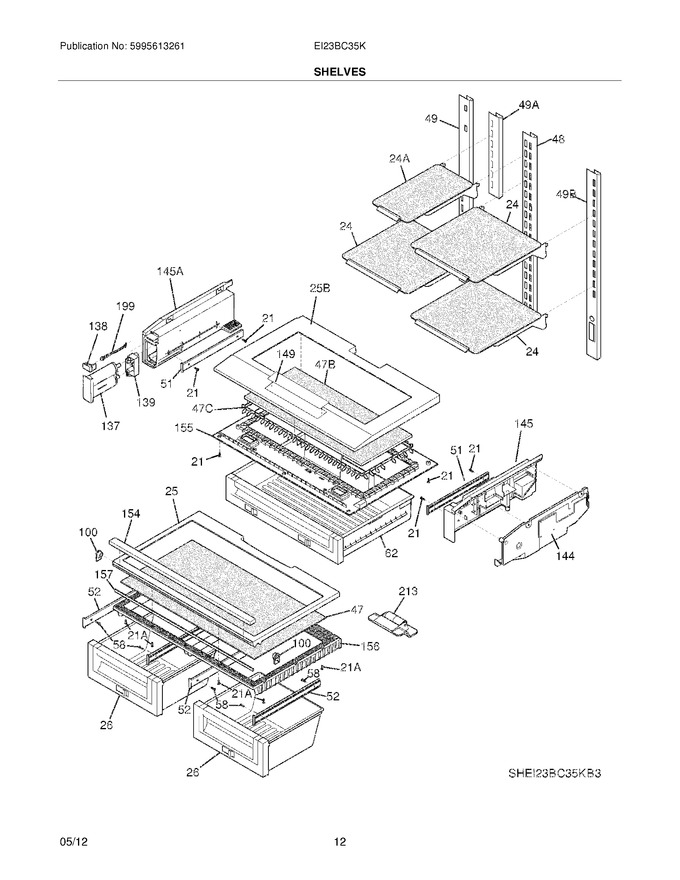

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 21 | 241953902 | Screw,no.8 - 18 X .380 ,3 |  |
|||
| 24 | 242068712 | Shelf,sliding 1/2 Wid ,cantilever ,``spill-safe`` | |
|||
| 25 | 241802205 | Frame-crisper Cover,upper | |
|||
| 26 | 241772808 | Pan-crisper | |
|||
| 47 | 241768802 | Glass-crisper Frame | |
|||
| 48 | 242122101 | Channel-shelf Mtg,center | |
|||
| 49 | 242122203 | Channel-shelf Mtg,side ,lh | |
|||
| 51 | 241816101 | Slide-deli | |
|||
| 52 | 241769002 | Slide-crisper Cover | |
|||
| 58 | 241941202 | Screw,8-18 X 3/8 | |
|||
| 62 | 241827206 | Pan-deli | |
|||
| 100 | 241768601 | Support-crspr Cover | |
|||
| F137 | EWF01 | Filter-water,water ,carbon Cassette ,front,with O`rings (Replaces:242175101) | |
|||
| 240527001 | O-ring,wtr Filter Base (Replaces:240526901) | |
||||
| 138 | 241885901 | Button-filter Release | |
|||
| 139 | 240396002 | Base-water Filter | |
|||
| F139 | 241858401 | Screw,no.6 X 1/2 Hilo | |
|||
| 144 | 241803901 | Cover-deli Air Control | |
|||
| 145 | 241803803 | Housing-deli Air Control | |
|||
| F145 | 242058709 | Support,rail | |
|||
| 149 | 241974501 | Insert-pan Cover,plastic | |
|||
| 154 | 241879902 | Trim-crisper Cover | |
|||
| 155 | 241803403 | Frame-deli Cover,lower | |
|||
| 156 | 241872006 | Frame-crisper Cover,lower | |
|||
| 157 | 241872201 | Beam-crisper Cover | |
|||
| 199 | 240397501 | Rod | |
|||
| F199 | 240398401 | Spring-filter Release Rod | |
|||
| 213 | 242010901 | Roller Assy,deli Pan | |
|||
| 21A | 5304453707 | Screw,no.8-18 (Replaces:241953901) | |
|||
| 24A | 242068713 | Shelf-``spill-safe``,cantilever ,1/4 Width,sliding | |
|||
| 25B | 241803303 | Frame-deli Cover,upper | |
|||
| 47B | 242176601 | Glass-deli Drawer,11.4 X 26.5 | |
|||
| F47B | 5304469950 | Sealant,rubber Silicone | |
|||
| 47C | 242186001 | Spacer,non-ptd | |
|||
| 49A | 242122001 | Channel-shelf Mtg,center ,icemaker Shelf | |
|||
| 49B | 242122302 | Channel-shelf Mtg,side ,rh | |
|||
| NI | 242146209 | Energy Guide . | |
