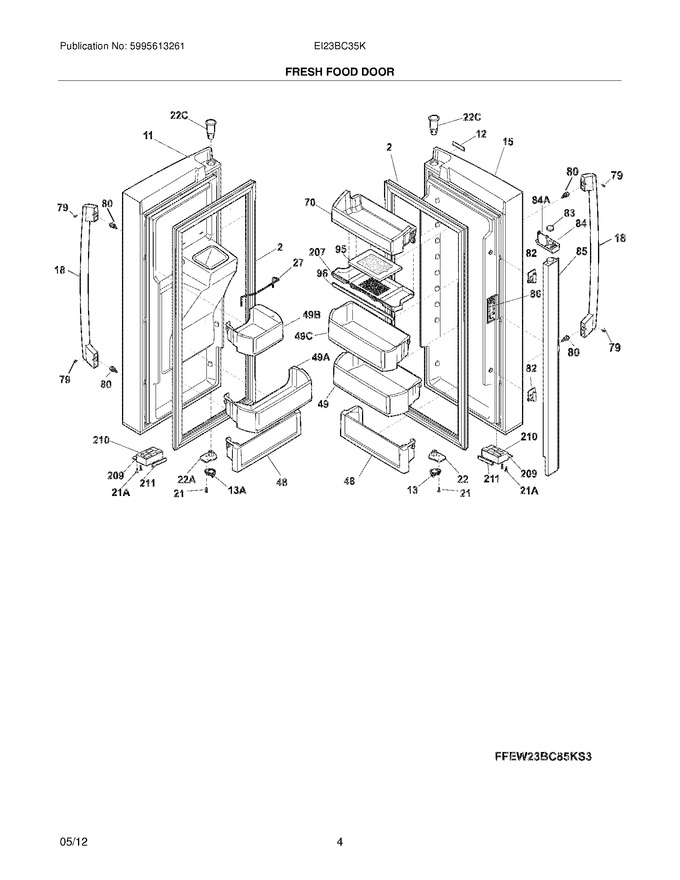

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| F2 | 241778315 | Gasket-refr Door,gray ,magnetic (Replaces:241778307) |  |
|||
| 11 | 241988086 | Door-refr,stainless ,lh ,lh | |
|||
| 12 | 241873301 | Nameplate,electrolux ,stainless | |
|||
| 13 | 241868401 | Door Stop,refrig Rh ,plated | |
|||
| 15 | 241988085 | Door-refr,stainless ,rh | |
|||
| 18 | 241881309 | Handle-door,stainless | |
|||
| 21 | 242017501 | Screw,10-32 X 0.750 | |
|||
| 22 | 242075601 | Cam,upper Hinge ,rh | |
|||
| 27 | 241752702 | Retainer,tall Bottle | |
|||
| 48 | 241804303 | Bin-door,can | |
|||
| 49 | 241804006 | Bin-door,gallon | |
|||
| 70 | 242131801 | Bin-door,1/2 Gallon | |
|||
| 79 | 218755401 | Screw-set,10-32 X 0.375 | |
|||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting | |
|||
| 82 | 241779401 | Hinge-mullion,upper/lower ,flipper | |
|||
| 83 | 241812201 | Magnet,door | |
|||
| 84 | 808274201 | Guide-mullion,magnet Cover ,flipper (Replaces:242190401) | |
|||
| 85 | 241778811 | Flipper Mullion Assembly,w/heater | |
|||
| 86 | 241779802 | Hinge-mullion,center ,flipper (Replaces:241779801) | |
|||
| 95 | EAFCBF | Filter-air (Replaces:242047801) | |
|||
| 96 | 242048001 | Trim-door Air Filter,w/graphics | |
|||
| 207 | 242047901 | Housing-air Filter | |
|||
| 209 | 242021001 | Housing-magnet,white | |
|||
| 210 | 241779101 | Magnet,door (Replaces:241779103) | |
|||
| 211 | 241979601 | Bumper,rubber | |
|||
| 13A | 241868402 | Door Stop,refr Lh ,plated | |
|||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 | |
|||
| 22A | 242075602 | Cam,upper Hinge ,lh | |
|||
| 22C | 241760401 | Bearing,hinge ,top | |
|||
| 49A | 241896003 | Bin-door,2-liter | |
|||
| 49B | 241906302 | Bin-door,dispenser | |
|||
| 49C | 241896103 | Bin-door,1/2 Gallon | |
|||
| 84A | 242190501 | Cover-mullion,magnet Cover | |
|||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces:5303918371) | |
|||
| 241788402 | Harness-wiring,flipper Mullion | |
||||
| 241926002 | Harness-wiring,door | |
||||
| NI | 241891104 | Light-led | |
|||
| 242015001 | Screw,8-18 X 1/2 | |
||||
| 240451503 | Screw (Replaces:242064001) | |
||||
| 242068601 | Bumper,rh Door | |
||||
| 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces:242103001) | |
||||
| 241701902 | Screwdriver,hex ,3/32`` ,ball Driver | |
||||
| 5304467131 | Wrench,allen (Replaces:241601002) | |
||||
| 241891401 | Cover-light,led Hole ,no Led | |
