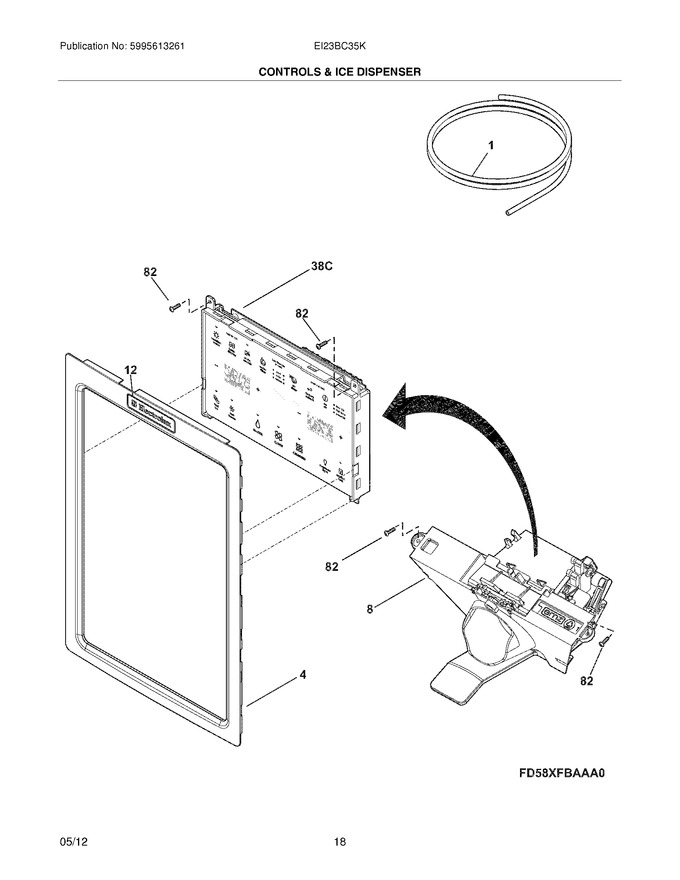

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet,5/16 - 59`` ,yellow ,cd |  |
|||
| 4 | 241893104 | Cover-module,stainless (Replaces:241757504) | |
|||
| F8 | 242100022 | Module-dispenser,silver (Replaces:242100005) | |
|||
| 12 | 241873301 | Nameplate,electrolux ,stainless | |
|||
| 82 | 241953902 | Screw,no.8 - 18 X .380 ,3 | |
|||
| F38C | 242102802 | Board-control,assembly | |
|||
| FNI | 241510904 | Harness-dispenser,grounding | |
|||
| NI | 218976428 | Tube-water,5/16 - 51`` ,natural | |
|||
| 5303918602 | Tube-water,ice Mold Fill ,1/4 - 44`` ,blue,w/extension (Replaces:242169404) | |
||||
| 5303918484 | Chute-ice (Replaces:242105401) | |
||||
| 218976425 | Tube-water Inlet,51.00`` ,brown/tan | |
||||
| 241965906 | Tube-water,5/16 - 67`` ,natural | |
||||
| 241964705 | Tube-water,1/4 - 24`` ,green | |
||||
| 241920106 | Tube-water,assembly ,5/16 - 54`` ,green ,ice Maker Fill,w/extension (Replaces:241920104) | |
||||
| FNI | 242040801 | Harness-wiring,dispenser | |
|||
| 242119001 | Harness-wiring | |
||||
| 5303918596 | Dispenser Heater Kit,115 (Replaces:5303918371) | |
