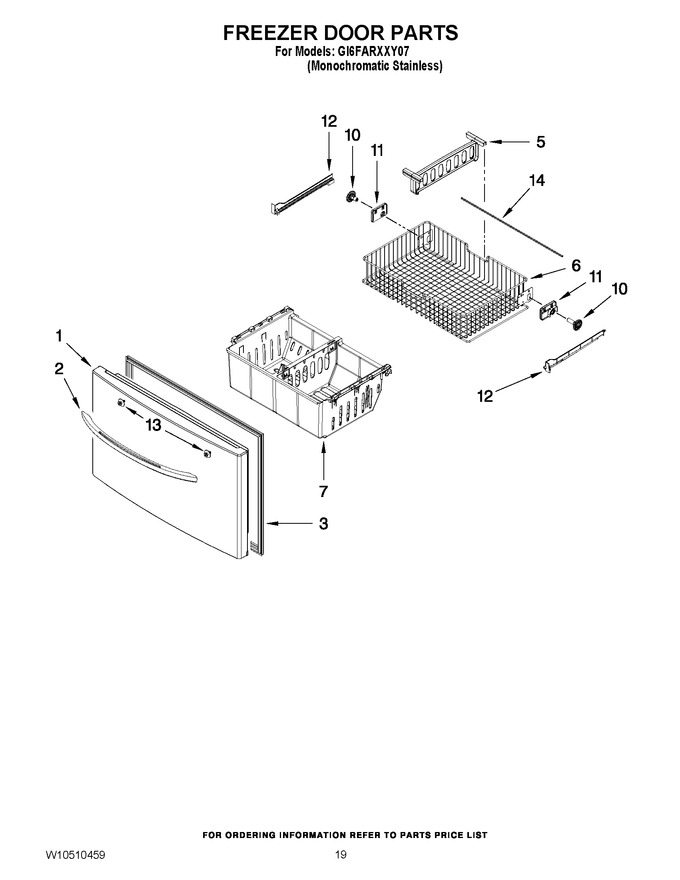

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 12977863SQ | Freezer Door (mono-stainless) (Replaces:12977863S) |  |
|||
| 2 | WPW10223025K | Handle, Door (stainless) (Replaces:W10223025) | |
|||
| 3 | WPW10714545 | Gasket, Door (apollo Grey) (Replaces:W10443322) | |
|||
| 5 | W10146439 | Divider, Upper Basket | |
|||
| 6 | WPW10348249 | Basket, Upper | |
|||
| 7 | WPW10293682 | Bin, Lower | |
|||
| 10 | WPW10474716 | Gear Spur (left) | |
|||
| WPW10474715 | Gear Spur (right) | |
||||
| 11 | W10348260 | Gear Mount (right) | |
|||
| W10348259 | Gear Mount (left) | |
||||
| 12 | W11489993 | Rack-left (Replaces:W10284694) | |
|||
| W11489994 | Rack-right (Replaces:W10284695) | |
||||
| 13 | WPW10288153 | Screw, Handle (shoulder) | |
|||
| 14 | W11173556 | Shaft, Rack (Replaces:12812904WD) | |
