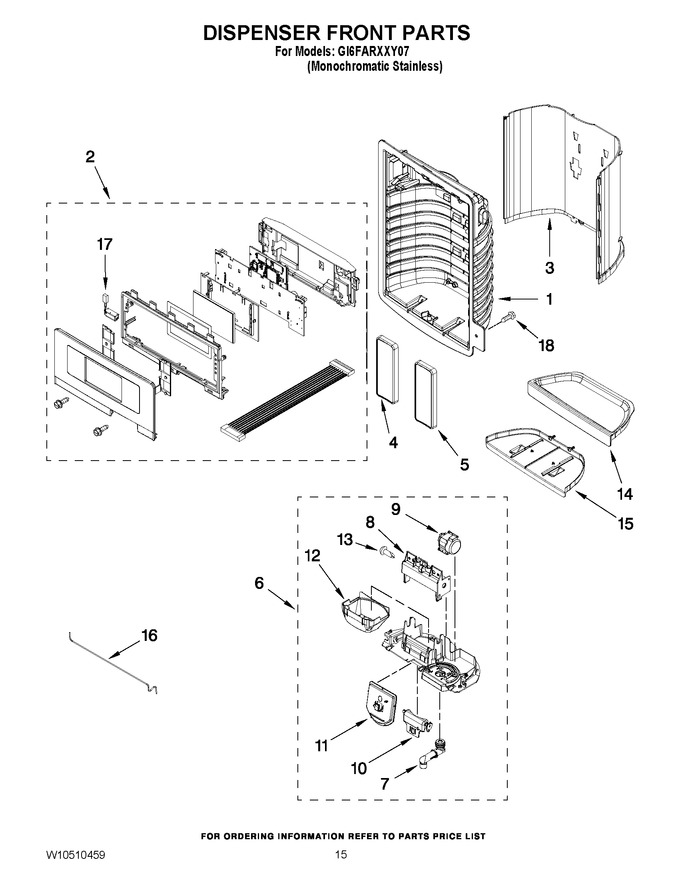

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | N/P | Housing, Dispenser (not Serviced) | ||||
2 | W11184112 | Ui Assembly (Replaces:W10337911) | ||||
3 | W11045978 | False, Wall, Dispenser (stainless) (Replaces:W10299897) | ||||
4 | WPW10368730 | Pad, Ice (stainless) (Replaces:W10334801) | ||||
5 | WPW10368730 | Pad, Water (stainless) (Replaces:W10334825) | ||||
6 | WPW10353552 | Separator Assy. | ||||
7 | W11227371 | Spigot (Replaces:2316647) | ||||
8 | W10174827 | Bracket, Ice Door | ||||
9 | WPW10205979 | Motor, Ice Door | ||||
10 | WPW10346124 | Support, Ice Door | ||||
11 | WPW10317279 | Door-ice | ||||
12 | WPW10435760 | Guide-ice (Replaces:W10339578) | ||||
13 | W10174818 | Clip | ||||
14 | W11192301 | Tray-dispenser (stainless) (Replaces:W10299895) | ||||
15 | WPW10267863 | Slide, Tray Dispenser (stainless) | ||||
16 | WPW10296451 | Tube, Water | ||||
17 | W11290115 | Led (Replaces:W10238083) | ||||
18 | WPW10273971 | Screw |
