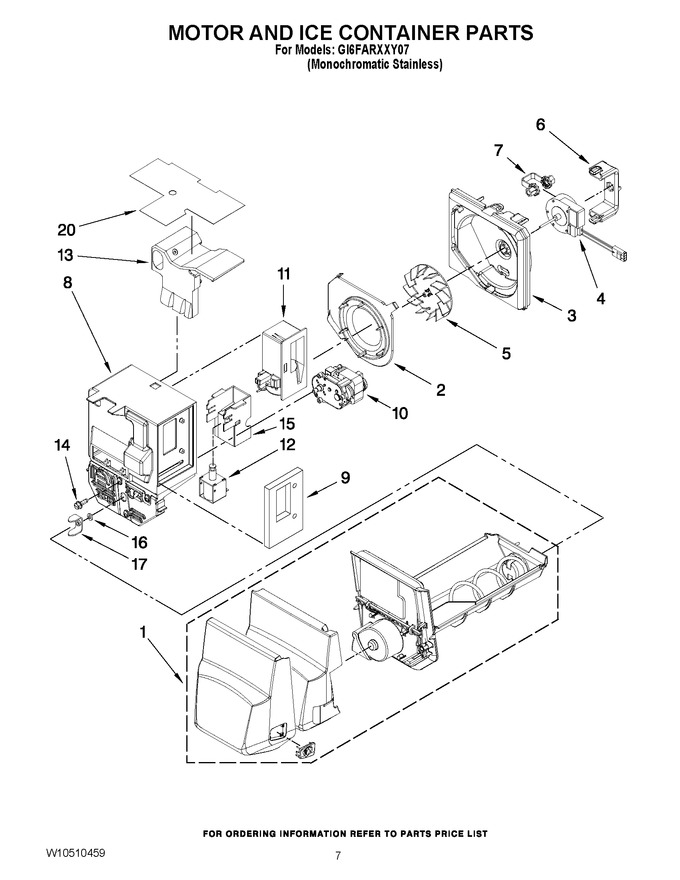

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W11185686 | Ice Bin Assembly (includes Auger) (Replaces:W10347671) | ||||
2 | W10121282 | Inlet, Blower | ||||
3 | W10309863 | Scroll, Blower | ||||
4 | W11529245 | Motor, Fan (Replaces:W10308033) | ||||
5 | WPW10123444K | Wheel, Blower (Replaces:W10123444) | ||||
6 | W10165970 | Clip, Fan Motor (Replaces:12956603) | ||||
7 | W10151687 | Grommet, Fan Motor | ||||
8 | WPW10309864 | Divider, Ice Box | ||||
9 | WP67006341 | Gasket, Damper (Replaces:12920001) | ||||
10 | WPW10309868 | Motor, Auger | ||||
11 | WPW10196393 | Damper, Control | ||||
12 | WPW10309866 | Solenoid | ||||
13 | W11676504 | Liner, Divider (Replaces:W10118612) | ||||
14 | 67006425 | Screw (3) (Replaces:12990511) | ||||
15 | W10346971 | Bracket, Solenoid | ||||
16 | W11378860 | Washer (Replaces:W10465946) | ||||
17 | WP63052-2 | Yoke, Ice Dispenser (Replaces:63052A001) | ||||
20 | W10142628 | Foil, Ice Box |
