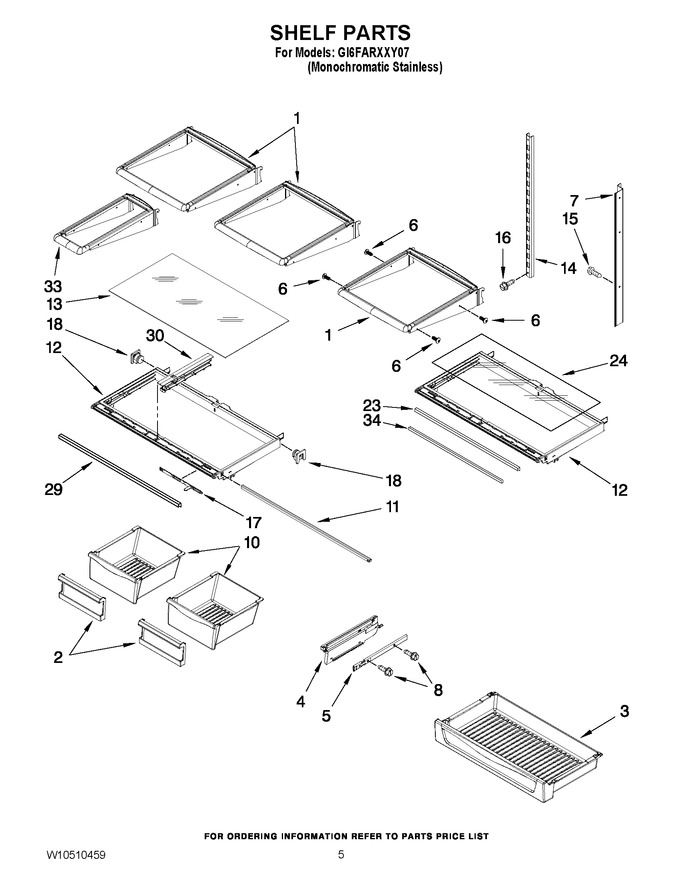

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W11402525 | Shelf, Glide (Replaces:12883507) | ||||
2 | WP67005912 | Handle, Crisper Pan (2) (Replaces:12727402SP) | ||||
3 | WPW10330534 | Drawer, Pantry | ||||
4 | W10395616 | Endcap-pantrl-l | ||||
W10395615 | Encdcap-pantry-r | |||||
5 | W10346889 | Runner-cab-l | ||||
W10346888 | Runner-cab-r | |||||
6 | W10854958 | Screw (Replaces:12990302) | ||||
7 | W10251968 | Ladder, Side (left) | ||||
W10251965 | Ladder, Side (right) | |||||
8 | W10185612 | Screw | ||||
10 | WP67004515 | Pan, Crisper (2) (Replaces:12804601SP) | ||||
11 | WP12642303WD | Brace, Crisper Cover | ||||
12 | WPW10329866 | Frame, Crisper | ||||
13 | WP67006704 | Glass, Crisper Cover (Replaces:12204824) | ||||
14 | W10273464 | Ladder, Center | ||||
15 | 67006425 | Screw (Replaces:12990513) | ||||
16 | W10709795 | Screw (2) (Replaces:12990515) | ||||
17 | WP67005864 | Slide, Humidity Control (Replaces:12530805SP) | ||||
18 | WP13062602 | Supports, Crisper Frame | ||||
23 | WP67006010 | Support-glass (Replaces:12655902SP) | ||||
24 | WP12204826 | Glass-shelf | ||||
29 | WPW10231345 | Trim, Crisper | ||||
30 | WPW10326469 | Rail, Center | ||||
33 | W11197490 | Shelf, Mini (Replaces:12885501N) | ||||
34 | WP12227305WD | Brace-pantry (Replaces:12227305WH) |
