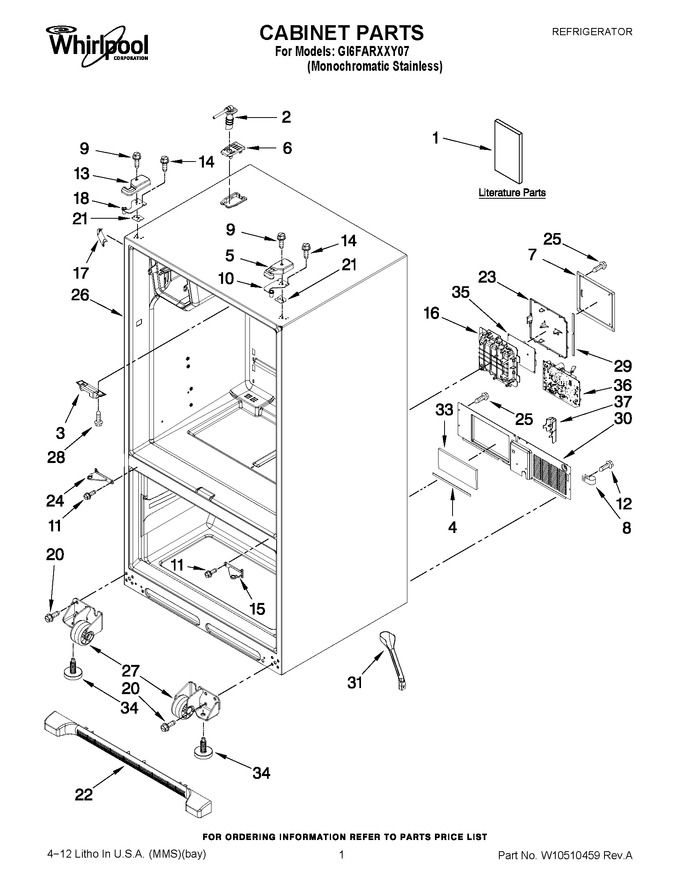

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | W10475393 | Tech Sheet |  |
|||
| W10357229 | Guide, Energy | |
||||
| W10314956 | Use & Care Guide | |
||||
| 2 | W11415785 | Tube W/waterline, Fill-im (Replaces:12961401) | |
|||
| 3 | WP67003405 | Block, Pivot (Replaces:12698403) | |
|||
| 4 | B5759655 | Gasket, Mc Back | |
|||
| 5 | WPW10191117 | Cover, Top Hinge (right) (apollo Grey) (Replaces:12962302AP) | |
|||
| 6 | W10191141 | Cover, Fill Tube (apollo Grey) (Replaces:12981401AP) | |
|||
| 7 | 12961602 | Cover, Control Box | |
|||
| 8 | W11456069 | Clamp-tube (Replaces:M0108107) | |
|||
| 9 | WP8281196 | Screw, Hinge Cover (Replaces:12992602) | |
|||
| 10 | W11592374 | Hinge, Top Right (Replaces:12963205ED) | |
|||
| 11 | WP67006380 | Screw, Center Hinge (Replaces:W10339086) | |
|||
| 12 | 67006425 | Screw (3) (Replaces:12990511) | |
|||
| 13 | WPW10337648 | Cover, Top Hinge (left) (apollo Grey) (Replaces:12962301AP) | |
|||
| 14 | WP489349 | Screw, Top Hinge (Replaces:12992403) | |
|||
| 15 | W10917988 | Hinge, Center (rt) (apollo Grey) (Replaces:13000002AP) | |
|||
| 16 | W10285271 | Box, Hv Control | |
|||
| 17 | WP12587703AP | Cover, Corner (2) (apollo Grey) | |
|||
| 18 | WP12963204ED | Hinge, Top Left | |
|||
| 20 | 67006564 | Screw (8) (Replaces:12991302) | |
|||
| 21 | 12999502 | Shim, Top Hinge (right) | |
|||
| 12999501 | Shim, Top Hinge (left) | |
||||
| 22 | WPW10534155 | Grille, Toe (apollo Grey) (Replaces:W10244558) | |
|||
| 23 | W10296541 | Lid, Hv Control | |
|||
| 24 | W10296541 | Hinge, Center (lt) (apollo Grey) | |
|||
| 25 | 12990702 | Screw, Cover | |
|||
| 26 | N/P | Cabinet (not A Servicable Part) | |
|||
| 27 | WPW10515762 | Roller Assembly (right) (Replaces:W10275849) | |
|||
| WPW10515763 | Roller Assembly (left) (Replaces:W10275850) | |
||||
| 28 | W10854958 | Screw, Block (Replaces:12990302) | |
|||
| 29 | 67006429 | Gasket, Hv Control (Replaces:12957801K) | |
|||
| 30 | W10211854 | Cover, Mc Back | |
|||
| 31 | W10619951 | Tube, Drain (Replaces:W10210988) | |
|||
| 33 | 12820505 | Fiber, Acoustic | |
|||
| 34 | WPW10141622 | Brake, Foot | |
|||
| 35 | WPW10356039 | Board, Hv Control (Replaces:W10120821) | |
|||
| 36 | W11035752 | Board, Control (Replaces:W10438707) | |
|||
| 37 | W10208592 | Guard, Splash | |
