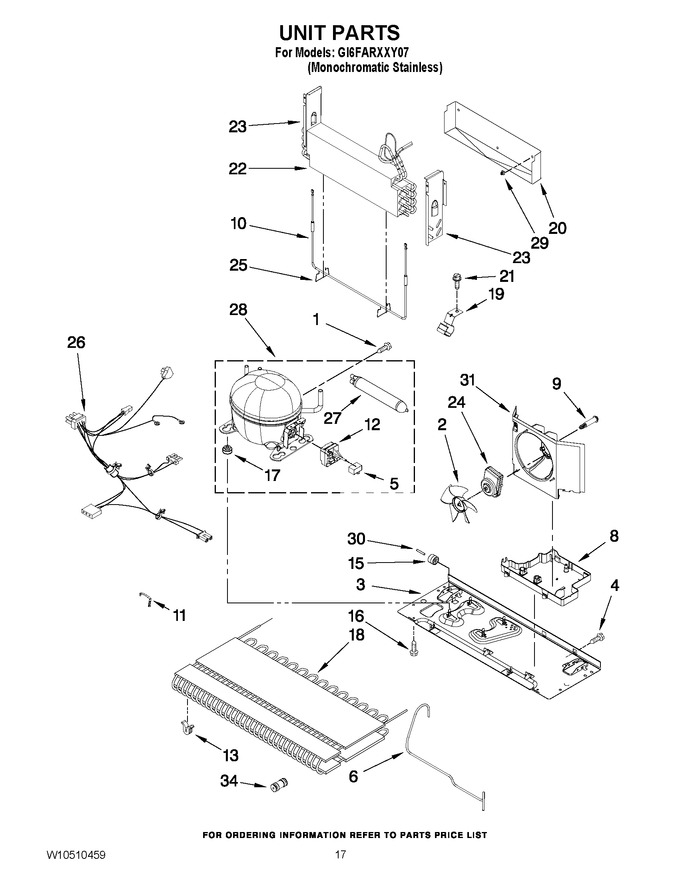

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |  |
|||
| 2 | WP12825803 | Blade, Fan | |
|||
| 3 | W10480111 | Basepan | |
|||
| 4 | 67006425 | Screw (Replaces:12990511) | |
|||
| 5 | WPW10662129 | Capacitor (Replaces:2264017) | |
|||
| 6 | WPW10233569 | Tube, Discharge | |
|||
| 8 | WPW10655368 | Pan, Drain (Replaces:W10296785) | |
|||
| 9 | W10216919 | Screw, Shoulder | |
|||
| 10 | WP12729123 | Heater, Defrost | |
|||
| 11 | W11661170 | Strap, Bale (Replaces:W10174384) | |
|||
| 12 | WPW10448874 | Start Device | |
|||
| 13 | WPW10137529 | Grommet, Cond (4) | |
|||
| 15 | WP67005149 | Roller (2) (Replaces:12477102) | |
|||
| 16 | W10709798 | Screw (Replaces:12992101) | |
|||
| 17 | WPW10169124 | Grommet (4) (Replaces:10835903SP) | |
|||
| 18 | W10505454 | Condenser | |
|||
| 19 | W10281329 | Clip, Drier | |
|||
| 20 | WPW10292803 | Tray, Drip | |
|||
| 21 | WP67006908 | Screw (Replaces:12990518) | |
|||
| 22 | W11536253 | Evaporator (Replaces:W10313899) | |
|||
| 23 | 12963002SP | Dam (left Side) | |
|||
| 12963102SP | Dam (right Side) | |
||||
| 24 | W11613295 | Motor, Fan (Replaces:W10239053) | |
|||
| 25 | 10428101 | Clip, Heater | |
|||
| 26 | W10860749 | Harness-mc (Replaces:W10402006) | |
|||
| 27 | WPW10143759 | Drier | |
|||
| 28 | WPW10507886 | Compressor (includes Items 11,12,17,27) (Replaces:W10445423) | |
|||
| 29 | 10623002 | Clip, Evaporator | |
|||
| 30 | 67006434 | Axle, Roller (2) (Replaces:12477202) | |
|||
| 31 | W11556315 | Shroud (Replaces:W10189184) | |
|||
| 34 | WPW10334458 | Connector-water | |
|||
| NI | WP978025 | Valve, Access (1/4``) | |
|||
| 978026 | Valve, Access (5/16``) | |
||||
| 978027 | Valve, Access (3/8``) | |
||||
| 978028 | Valve, Access (1/2``) | |
||||
| 978029 | Valve, Access (5/8``) | |
||||
| 978030 | Valve, Access (3/4``) | |
||||
| 876764 | Valve, Access (3/16``) | |
||||
| N/P | Refrigerant Charge (5.25 Ozs. (r-134a)) | |
