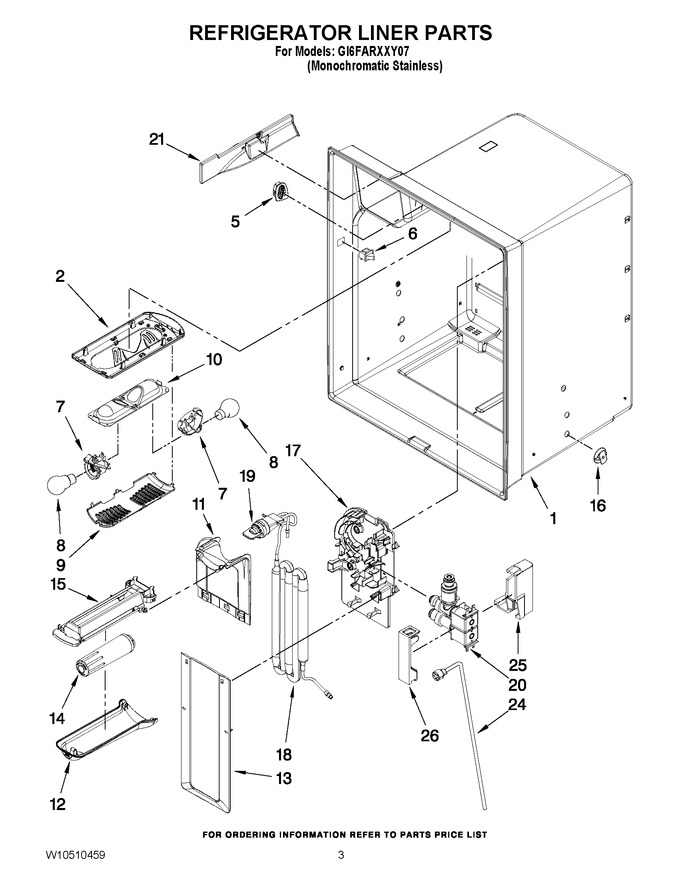

View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | N/P | Liner (not A Serviceable Part) | ||||
2 | WPW10468891 | Module, Light (Replaces:W10349134) | ||||
5 | W10555984 | Grille, Air (Replaces:13008201) | ||||
6 | W11396033 | Switch, Light (2) (Replaces:12466103) | ||||
7 | W11447232 | Socket, Light (Replaces:12570701V) | ||||
8 | 8009 | Bulb, Light (Replaces:W10311505N) | ||||
9 | 67006318 | Cover, Light (Replaces:12905902) | ||||
10 | W10443023 | Housing, Light | ||||
11 | 12960101 | Cover, Water Tank (upper) | ||||
12 | WP67006331 | Lid, Water Filter (Replaces:12960301) | ||||
13 | 67006329 | Cover, Water Tank (lower) (Replaces:12960001) | ||||
14 | EDR4RXD1 | Filter, Water (Replaces:UKF8001) | ||||
15 | 67006325 | Bracket, Filter Base (Replaces:12955901) | ||||
16 | W10190541 | Mount, Crisper | ||||
17 | W10365768 | Bracket, Water Tank & Valve | ||||
18 | W10502642 | Water Tank & Head Assembly (Replaces:W10415891) | ||||
19 | W11395888 | Plug, Bypass (Replaces:12664501SP) | ||||
20 | WPW10312696 | Valve, Dual Water | ||||
21 | WPW10309869 | Cover, Ice Box Harness | ||||
24 | WPW10444033 | Waterline, Cabinet (w/nut) | ||||
25 | W10118193 | Enclosure, Water Valve Connector | ||||
26 | W10118194 | Lid, Enclosure |
View Diagram in Separate Window
Print Part List
Move Mouse over Availability column to View Location Quantities-on-Hand
