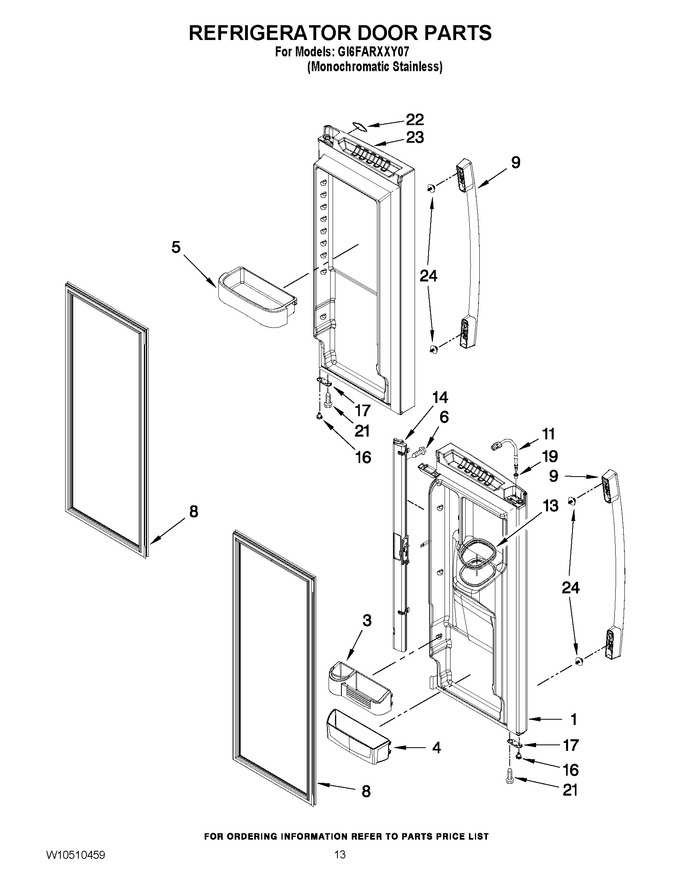

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 13107315SQ | Door, Left (mono-stainless) (Replaces:13107315S) | ||||
3 | WPW10323808 | Bucket, Upper | ||||
4 | WPW10212139 | Bucket, Small | ||||
5 | WPW10224961 | Bucket, Medium | ||||
6 | W11311945 | Screw (Replaces:12990204) | ||||
8 | W10830055 | Gasket, Door (apollo Grey) (Replaces:W10443238) | ||||
9 | W11351147 | Handle, Door (stainless) (Replaces:W10223019) | ||||
11 | WPW10296451 | Waterline, Door | ||||
13 | WPW10287601 | Seal, Ice Chute | ||||
14 | WP12722815AP | Mullion, Door (stainless) | ||||
16 | WP12028505AP | Closure, Door (apollo Grey) | ||||
17 | W11703060 | Stop, Door (apollo Grey) (Replaces:12968202AP) | ||||
19 | 12996601 | Clip, Bushing Wire (left Door) | ||||
21 | WP98165 | Screw (Replaces:12990521) | ||||
22 | WPW10393265 | Nameplate | ||||
23 | 13107316SQ | Door, Right (mono-stainless) (Replaces:13107316S) | ||||
24 | WPW10288153 | Screw, Handle (shoulder) |
