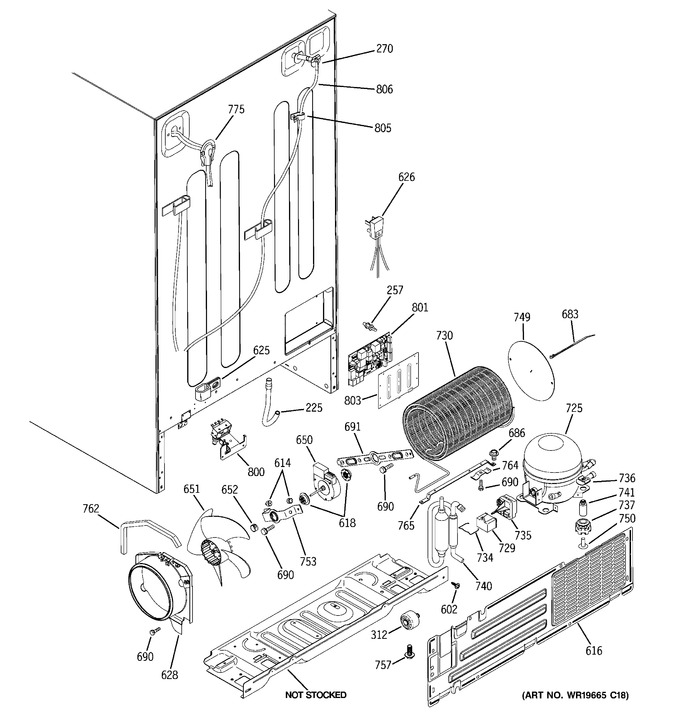

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 225 | WR02X11426 | Tube Drain |  |
|||
| 257 | WR02X10663 | Stand Off | |
|||
| 270 | WR17X11506 | Grommet And Tube Asm | |
|||
| 312 | WR02X10695 | Wheel Mobility Rear | |
|||
| 602 | WR01X10592 | Scr 1/4-14 Ab Ihw 3/4 S | |
|||
| 614 | WR02X10540 | Bumper Lid | |
|||
| 616 | WR82X10109 | Cover Access | |
|||
| 618 | WR02X11331 | Grommet Evap Fan | |
|||
| 625 | WR01X10684 | Clamp Cable | |
|||
| 626 | WR23X108 | Power Cord | |
|||
| 628 | WR17X11252 | Shroud Condenser | |
|||
| 650 | WR60X10216 | Motor Dc Cond Fan | |
|||
| 651 | WR60X10206 | Blade Conf Fan Asm | |
|||
| 652 | WR02X12149 | Ring Compression | |
|||
| 683 | WR02X11027 | Wire Tie | |
|||
| 686 | WR01X10252 | Scr 10-32 Tt Hxw 5/16 S | |
|||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S | |
|||
| 691 | WR02X10593 | Bracket Cond Fan (rear) | |
|||
| 725 | WR87X10182 | Compressor Asm Mei | |
|||
| 729 | WR62X79 | Capacitor | |
|||
| 730 | WR84X10022 | Cond Repl Kit | |
|||
| 734 | WR02X11999 | Clip Retainer Mei | |
|||
| 735 | WR08X10068 | Overload Ptcr Combo | |
|||
| 736 | WR2X8203 | Clip Compressor Mount | |
|||
| 737 | WR02X10099 | Grommet | |
|||
| 740 | WR86X96 | Dryer Bifurcated Xh9 | |
|||
| 741 | WR1X1779 | Stud Mtg Compr | |
|||
| 749 | WR17X11978 | Baffle Cond Air | |
|||
| 750 | WR1X1786 | Screw 10-32 Tr 1/2 | |
|||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) | |
|||
| 757 | WR01X10622 | Scr 10-32 B Ihxw 1/2 | |
|||
| 762 | WR14X10199 | Foam Strip Se Adh | |
|||
| 764 | WR2X9000 | Clip, Cond Mnt | |
|||
| 765 | WR17X10695 | Bracket Condenser Bar | |
|||
| 775 | WR17X10796 | Cover Water Line | |
|||
| 800 | WR57X10040 | Water Valve | |
|||
| 801 | WR55X10699 | Board Asm Main Control | |
|||
| 803 | WR02X12025 | Main Board Enclosure Asm | |
|||
| 805 | WR02X12265 | Clamp Tube | |
|||
| 806 | WR17X11625 | Tube Plastic | |
