1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

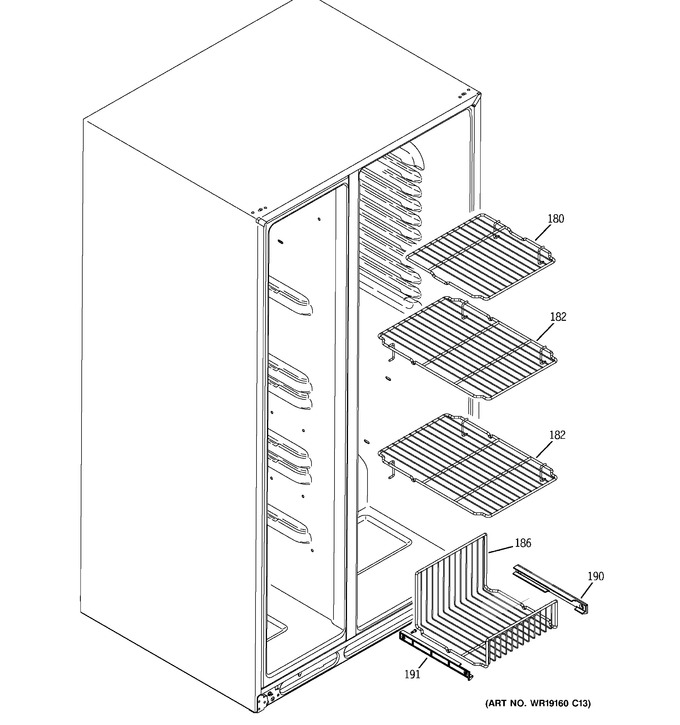

Diagram #	Part Number		Description	Series	Find a Video
180	WR71X10680		Shelf Fixed Fz
182	WR71X10679		Shelf Slideout Fz
186	WR21X10124		Basket Wire Slideout Fz
190	WR72X10061		Support Slide Basket R
191	WR72X10062		Support Slide Basket L
