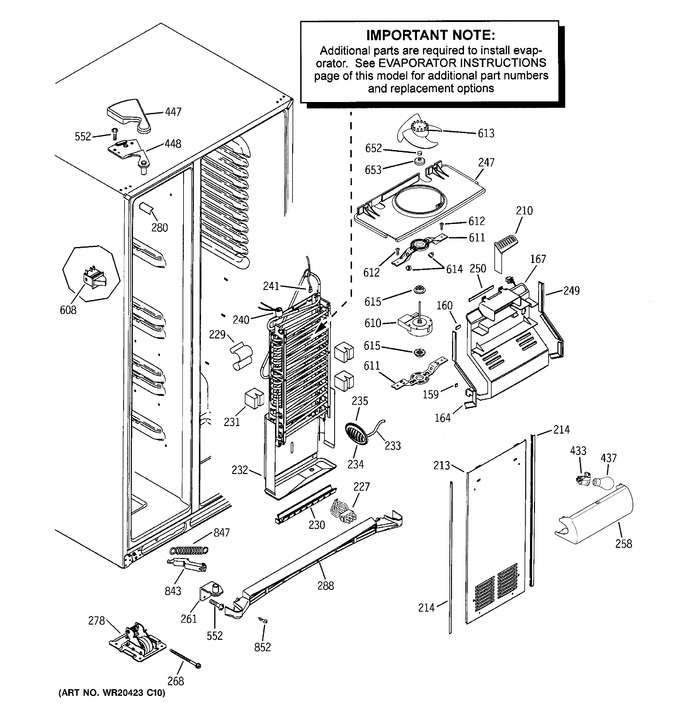

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 159 | WR14X10067 | Foam Strip Se Adh |  |
|||
| 160 | WR14X10068 | Foam Strip Se Adh | |
|||
| 164 | WR14X10164 | Gasket Plenum | |
|||
| 167 | WR17X12026 | Plenum Evap Asm | |
|||
| 210 | WR74X10216 | Plenum Extension Fz | |
|||
| 213 | WR17X11668 | Cover Evaporator Front | |
|||
| 214 | WR14X10072 | Gasket Evap Cover | |
|||
| 227 | WR23X10487 | Harness Ac Fz Intermedia | |
|||
| 229 | WR02X10552 | Clip Evap Thermistor | |
|||
| 230 | WR51X10055 | Heater & Bracket Asm | |
|||
| 231 | WR02X10669 | Block Evap Seal | |
|||
| 232 | WR17X10811 | Shield Asm Trough | |
|||
| 233 | WR55X10026 | Sensor Temp Fz | |
|||
| 234 | WR02X10647 | Grille Sensor | |
|||
| 235 | WR02X10668 | Shunt Sensor | |
|||
| 240 | WR50X10065 | Thermostat Def | |
|||
| 241 | WR55X10025 | Sensor Temperature Ff | |
|||
| 247 | WR17X12642 | Orifice Fan Asm | |
|||
| 249 | WR14X10165 | Gasket Plenum | |
|||
| 250 | WR14X10069 | Foam Strip Se Adh | |
|||
| 258 | WR17X11446 | Shield Light Fz | |
|||
| 261 | WR13X10162 | Hinge Btm & Pin Asm Bq | |
|||
| WR13X10137 | Hinge Btm & Pin Asm Wh | |
||||
| WR13X10160 | Hinge Btm & Pin Asm Bk | |
||||
| 268 | WR01X10609 | Screw Mobility | |
|||
| 278 | WR02X12274 | Mobility Front Asm | |
|||
| 280 | WR02X10640 | Cap Corner Oc Wh | |
|||
| WR02X10785 | Cap Corner Oc Bq | |
||||
| WR02X10781 | Cap Corner Oc Bk | |
||||
| 288 | WR74X10270 | Grille Base | |
|||
| WR74X10271 | Grille Base | |
||||
| WR74X10272 | Grille Base | |
||||
| 433 | WR2X9391 | Socket & Terminal Asm | |
|||
| 437 | 60A | Lamp 60w Appl | |
|||
| 447 | WR02X10787 | Cover Hinge Bq | |
|||
| WR02X10687 | Cover Hinge Wh | |
||||
| WR02X10783 | Cover Hinge Bk | |
||||
| 448 | WR13X10216 | Hinge Top & Pin Asm Fz | |
|||
| 552 | WR01X10631 | Scr 12-24 Tt Ovt .900 S | |
|||
| 608 | WR23X10179 | Switch Light | |
|||
| 610 | WR60X10224 | Motor Dc Evap Fan Asm | |
|||
| 611 | WR17X12635 | Bottom Bracket Evap | |
|||
| 612 | WR01X10448 | Scr 8-19 Hi/lo Trp 1 S | |
|||
| 613 | WR60X10208 | Blade Evap Fan Asm | |
|||
| 614 | WR02X10540 | Bumper Lid | |
|||
| 615 | WR02X12008 | Grommet Evap Fan | |
|||
| 652 | WR02X12149 | Ring Compression | |
|||
| 653 | WR02X10322 | Cap Dust | |
|||
| 843 | WR11X10010 | Lever Asm Fz Side Bk | |
|||
| WR11X10008 | Lever Asm Fz Side Wh | |
||||
| WR11X10012 | Lever Asm Fz Side Bq | |
||||
| 847 | WR1X2027 | Spring Closure | |
|||
| 852 | WR01X10858 | Scr 8-18 Ab Pnp 5/8 S | |
