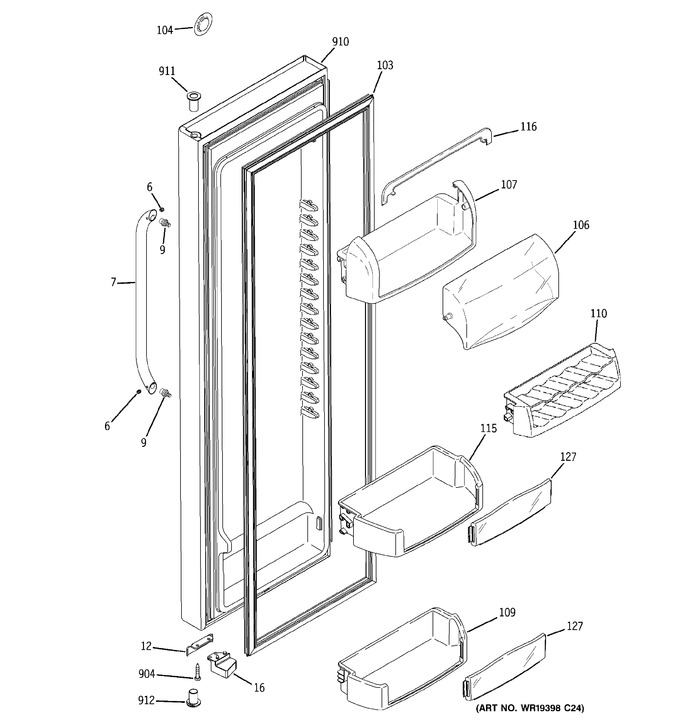

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 6 | WR01X10450 | Set Screw |  |
|||
| 7 | WR12X10909 | Tubulur Handle Asm | |
|||
| WR12X10908 | Tubulur Handle Asm | |
||||
| WR12X10907 | Tubulur Handle Asm | |
||||
| 9 | WR02X12390 | Fastener Handle Ss | |
|||
| 12 | WR02X10690 | Stop Door Wh | |
|||
| WR02X10786 | Stop Door Bq | |
||||
| WR02X10782 | Stop Door Bk | |
||||
| 16 | WR02X10779 | Cam Closure Ff Bk | |
|||
| WR02X10637 | Cam Closure Ff Wh | |
||||
| 103 | WR24X10155 | Gasket Door Ff Wh | |
|||
| WR24X10157 | Gasket Door Ff Bk | |
||||
| 104 | WR04X10168 | Badge | |
|||
| 106 | WR22X10042 | Door Dairy Clear | |
|||
| 107 | WR22X10041 | Compartment Dairy | |
|||
| 109 | WR71X10605 | Module Shelf Ff | |
|||
| 110 | WR71X10643 | Rack Can | |
|||
| 115 | WR71X10607 | Module Shelf Ff | |
|||
| 116 | WR22X10043 | Trim Dairy Compartment | |
|||
| 127 | WR71X10761 | Insert Module | |
|||
| 904 | WR01X10582 | Scr 10-16 | |
|||
| 910 | WR78X11675 | Door Foam Asm Ff Bq | |
|||
| WR78X11673 | Door Foam Asm Ff Bk | |
||||
| WR78X11671 | Door Foam Asm Ff Wh | |
||||
| 911 | WR01X10233 | Thimble Door Top Bk | |
|||
| WR01X10207 | Thimble Door Top Wh | |
||||
| WR01X10236 | Thimble Door Top Bq | |
||||
| 912 | WR01X10232 | Thimble Door Btm Bk | |
|||
| WR01X10206 | Thimble Door Btm Wh | |
||||
| WR01X10235 | Thimble Door Btm Bq | |
