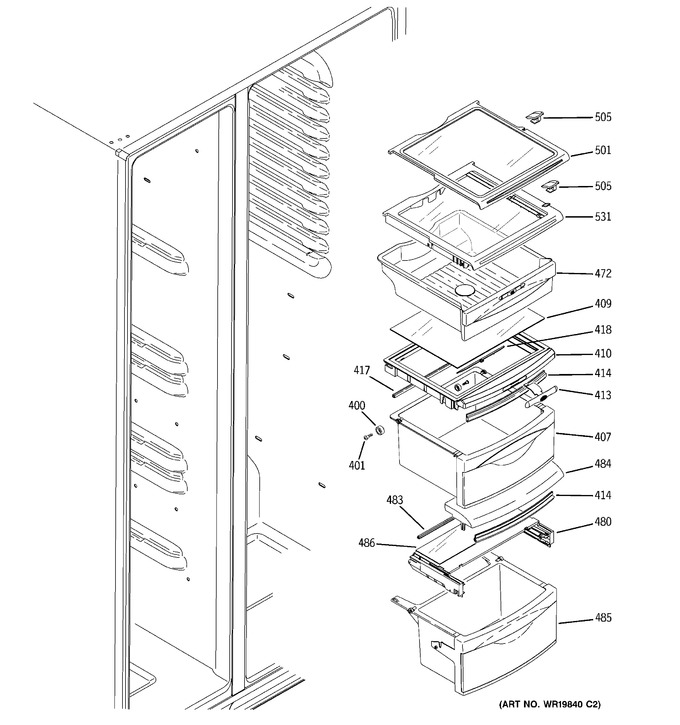

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 400 | WR01X10209 | Wheel Pan Cover |  |
|||
| 401 | WR01X10583 | Scr 10-16 | |
|||
| 407 | WR32X10574 | Pan Middle Asm | |
|||
| 409 | WR32X10156 | Glass Pan Covr | |
|||
| 410 | WR32X10184 | Cover Middle Pan | |
|||
| 413 | WR02X10801 | Humidity Control | |
|||
| 414 | WR14X10059 | Gasket Pan Crv Front | |
|||
| 417 | WR14X10058 | Gasket Pan Crv Rear | |
|||
| 418 | WR02X10633 | Slide Middle Pan Cover | |
|||
| 472 | WR32X10525 | Pan Snack Asm | |
|||
| 480 | WR32X10153 | Cover Top Meat | |
|||
| 483 | WR14X10197 | Gasket Cover Rear | |
|||
| 484 | WR32X10146 | Cover Front Meat | |
|||
| 485 | WR32X10524 | Pan Asm Meat | |
|||
| 486 | WR32X10155 | Glass Pan Covr | |
|||
| 501 | WR71X10582 | Shelf Slideout Asm | |
|||
| 505 | WR02X10662 | Stop Shelf | |
|||
| 531 | WR71X10685 | Shelf Snack Pan Asm | |
