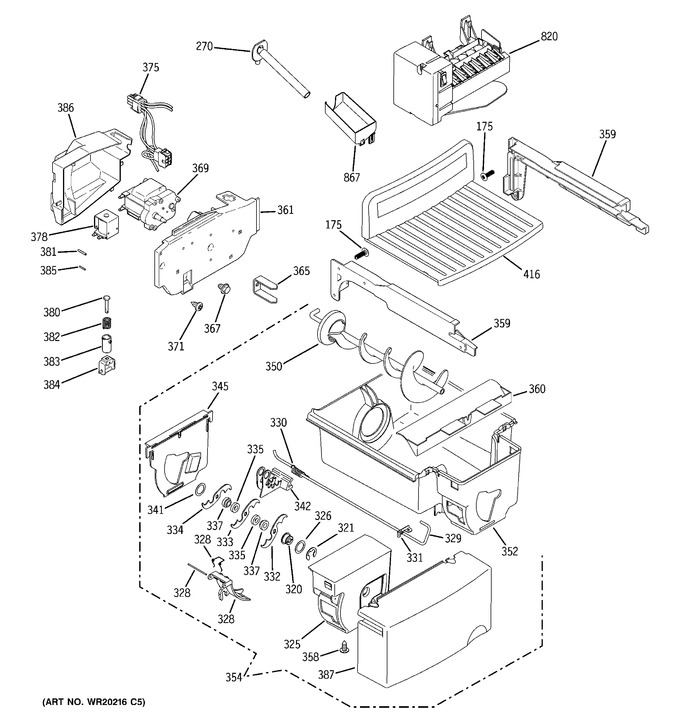

Diagram #	Part Number		Description	Series	Find a Video
175	WR01X10035		Scr 8-18 Ab Ihw 5/8 S
270	WR17X11506		Grommet And Tube Asm
320	WR01X10315		Nut Auger Frt Disp
321	WR1X1367		Retainer Ring E
325	WR17X10717		Housing Crusher Disp
326	WR1X1366		Washer
328	WR17X10703		Deflector Ice Disp
	WR2X4143		Pin Deflector Disp
	WR2X4561		Spring Ice Deflector
329	WR17X11403		Wire Actuator Disp
330	WR02X10583		Spring Deflector
331	WR02X10580		Retainer Spring
332	WR17X11239		Blades Moving Disp
333	WR17X11240		Blades Moving Disp
334	WR17X11241		Blades Moving Disp
335	WR2X4139		Spacer Crusher Middle
337	WR2X4138		Spacer Crusher Stationar
341	WR29X10045		Washer Crusher Blade
342	WR02X10691		Stationary Blades Asm
345	WR17X11497		Cover Crusher Hsg Disp
350	WR17X11939		Auger Asm Disp
352	WR30X10074		Bucket Ice Disp
354	WR17X12091		Bucket And Auger Asm
358	WR01X10607		Scr 8-18 Ab Phr 1/2 S
359	WR72X10233		Glide Bucket Lh Disp
	WR72X10234		Glide Bucket Rh Disp
360	WR17X11449		Diverter Overflow
361	WR17X12323		Cover Motor Back
365	WR02X11941		Drive Auger Disp
367	WR01X10618		Scr 8-18 Tpt 1/4
369	WR60X10258		Auger Motor
371	WR01X10619		Scr 10-18 Hi/lo Hxw 1/2
375	WR23X10558		Harness Motor Disp
378	WR62X58		Solenoid & Arm Asm
380	WR17X1064		Plunger Solenoid
381	WR2X4257		Pin Spiral
382	WR2X4258		Spring Solenoid Linkage
383	WR17X1065		Collar Solenoid Disp
384	WR17X1066		Stirrup Solenoid Disp
385	WR2X4259		Pin Spiral
386	WR02X12491		Cover Auger Motor
387	WR17X11968		Cover Bucket Disp
416	WR71X10655		Shelf Chiller
820	WR30X10061		Icemaker Asm
867	WR29X10058		Cup Fill Im
