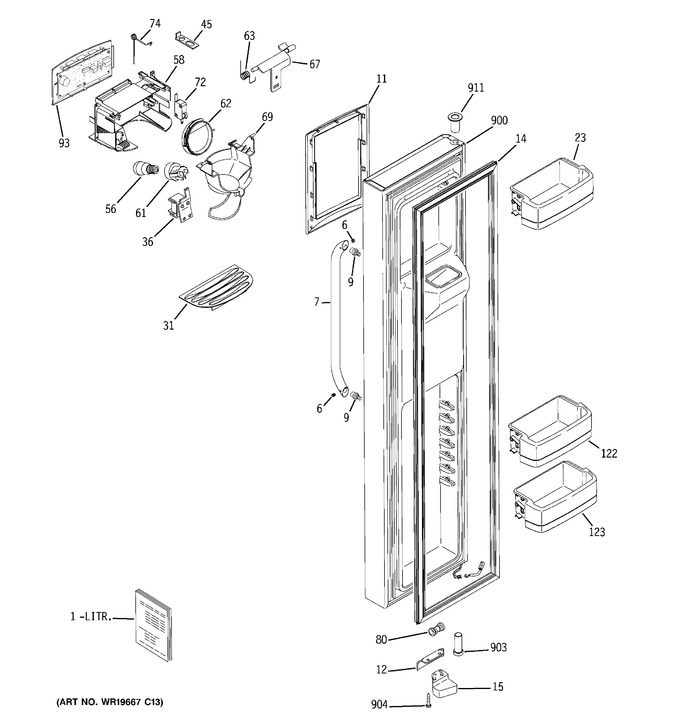

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 31-51752 | Pm Mini Manual Wiring |  |
|||
| 46-60543 | Pm Guide Owners | |
||||
| 6 | WR01X10450 | Set Screw | |
|||
| 7 | WR12X10907 | Tubulur Handle Asm | |
|||
| WR12X10909 | Tubulur Handle Asm | |
||||
| WR12X10908 | Tubulur Handle Asm | |
||||
| 9 | WR02X12390 | Fastener Handle Ss | |
|||
| 11 | WR38X10356 | Trim Recess Disp Bow | |
|||
| WR38X10219 | Recess Trim Bowed Bk | |
||||
| WR38X10213 | Recess Trim Bowed Wh | |
||||
| 12 | WR02X10786 | Stop Door Bq | |
|||
| WR02X10782 | Stop Door Bk | |
||||
| WR02X10690 | Stop Door Wh | |
||||
| 14 | WR24X10158 | Gasket Door Fz Bk | |
|||
| WR24X10156 | Gasket Door Fz Wh | |
||||
| 15 | WR02X10780 | Cam Closure Fz Bk | |
|||
| WR02X10638 | Cam Closure Fz Wh | |
||||
| 23 | WR71X10254 | Module Shelf Fz Fixed | |
|||
| 31 | WR17X11655 | Grille Recess Bk | |
|||
| WR17X11656 | Grille Recess Bq | |
||||
| WR17X11654 | Grille Recess Wh | |
||||
| 36 | WR62X10055 | Solenoid Asm | |
|||
| 45 | WR2X8818 | Retainer Recess Door | |
|||
| 56 | WR02X12208 | Light Dispenser | |
|||
| 58 | WR17X12116 | Housing Shield Disp | |
|||
| WR17X12117 | Housing Shield Disp | |
||||
| WR17X12174 | Housing Shield Disp | |
||||
| 61 | WR02X12007 | Socket Lamp | |
|||
| 62 | WR17X11653 | Door Recess Asm | |
|||
| 63 | WR02X10585 | Spring Recess Door | |
|||
| 67 | WR17X10706 | Crank Door Recess | |
|||
| 69 | WR17X12135 | Funnel Ice Disp | |
|||
| WR17X12137 | Funnel Ice Disp | |
||||
| WR17X12084 | Funnel Ice Disp | |
||||
| 72 | WR23X10224 | Switch | |
|||
| 74 | WR02X10584 | Spring Funnel | |
|||
| 80 | WR02X11330 | Union Connector Reg | |
|||
| 93 | WR55X10802 | Interface Dispenser Asm | |
|||
| WR55X10801 | Interface Dispenser Asm | |
||||
| WR55X10803 | Interface Dispenser Asm | |
||||
| 122 | WR71X10291 | Module Shelf Fz | |
|||
| 123 | WR71X10501 | Module Shelf Fz Fixed | |
|||
| 900 | WR78X12190 | Door Foam Asm Fz | |
|||
| WR78X12189 | Door Foam Asm Fz | |
||||
| WR78X12188 | Door Foam Asm Fz | |
||||
| 903 | WR01X10237 | Thimble Door Btm Fz Bq | |
|||
| WR01X10234 | Thimble Door Btm Fz Bk | |
||||
| WR01X10208 | Thimble Door Btm Fz Wh | |
||||
| 904 | WR01X10582 | Scr 10-16 | |
|||
| 911 | WR01X10207 | Thimble Door Top Wh | |
|||
| WR01X10233 | Thimble Door Top Bk | |
||||
| WR01X10236 | Thimble Door Top Bq | |
