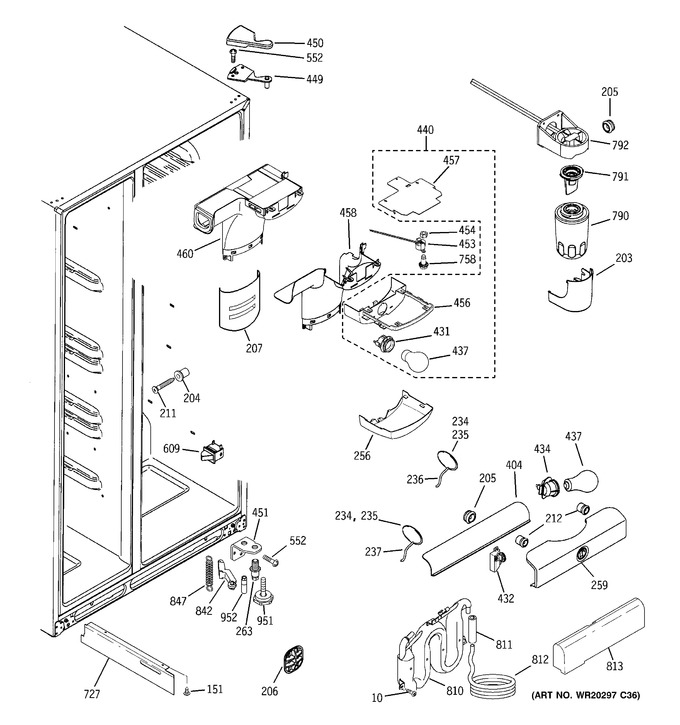

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 10 | WR01X10065 | Scr 8-18 Ba Por 5/8 Ss |  |
|||
| 151 | WR01X10588 | Scr 8-18 Ab Ihxw 9/16 S | |
|||
| 203 | WR17X10800 | Cover Water Filter | |
|||
| 204 | WR02X12187 | Support Shelf | |
|||
| 205 | WR02X10678 | Grommet | |
|||
| 206 | WR02X10671 | Grille Air Return | |
|||
| 207 | WR17X10909 | Cover Inlet Discharge | |
|||
| 211 | WR01X10568 | Scr8-18 Ab Ufl 1 1/2 Ss | |
|||
| 212 | WR02X10689 | Grommet Base Grille | |
|||
| 234 | WR02X10647 | Grille Sensor | |
|||
| 235 | WR02X10668 | Shunt Sensor | |
|||
| 236 | WR55X10027 | Sensor Temp Ff | |
|||
| 237 | WR55X10028 | Sensor Temp Ff | |
|||
| 256 | WR17X11942 | Shield Light Ff | |
|||
| 259 | WR17X11943 | Light Shield | |
|||
| 263 | WR02X12263 | Pin Hinge Btm Adj Hollow | |
|||
| 404 | WR17X11609 | Diverter Ff Airflow | |
|||
| 431 | WR02X10732 | Socket Lamp Fz | |
|||
| 432 | WR02X12287 | Reflector Asm Middle | |
|||
| 434 | WR02X10645 | Socket Lamp | |
|||
| 437 | 60A | Lamp 60w Appl | |
|||
| 440 | WR17X12028 | Housing Lamp Asm | |
|||
| 449 | WR13X10217 | Hinge Top & Pin Asm Ff | |
|||
| 450 | WR02X10788 | Cover Hinge Bq | |
|||
| WR02X10784 | Cover Hinge Bk | |
||||
| WR02X10688 | Cover Hinge Wh | |
||||
| 451 | WR13X10586 | Hinge Btm | |
|||
| WR13X10587 | Hinge Btm | |
||||
| WR13X10588 | Hinge Btm | |
||||
| 453 | WR23X10493 | Harness Ff Lt | |
|||
| 454 | WR01X10212 | Nut 8-32 | |
|||
| 456 | WR17X11959 | Housing Lamp Ff | |
|||
| 457 | WR17X12201 | Reflector Ff Light | |
|||
| 458 | WR17X10912 | Cover Ff Inlet | |
|||
| 460 | WR49X10091 | Cover Asm Ff Inlet | |
|||
| 552 | WR01X10631 | Scr 12-24 Tt Ovt .900 S | |
|||
| 609 | WR23X10530 | Switch Light | |
|||
| 727 | WR17X12295 | Separator Air Hiside | |
|||
| 758 | WD2X323 | Scr 8-32 X 3/8 Sph | |
|||
| 790 | MWF | Filter Canister | |
|||
| 791 | WR02X11705 | Cap Filter Bypass | |
|||
| 792 | WR17X11028 | Filter Asm And Tube | |
|||
| 810 | WR17X11440 | Water Tank Disp Asm | |
|||
| 811 | WR02X11288 | Insul Tube Foam | |
|||
| 812 | WR17X11439 | Tube Plastic | |
|||
| 813 | WR17X11620 | Insulation Tank Foam | |
|||
| 842 | WR11X10009 | Lever Asm Ff Side Bk | |
|||
| WR11X10007 | Lever Asm Ff Side Wh | |
||||
| WR11X10011 | Lever Asm Ff Side Bq | |
||||
| 847 | WR1X2027 | Spring Closure | |
|||
| 951 | WR01X10686 | Screw Leveling | |
|||
| 952 | WR02X12780 | Pin Hinge Btm Support | |
