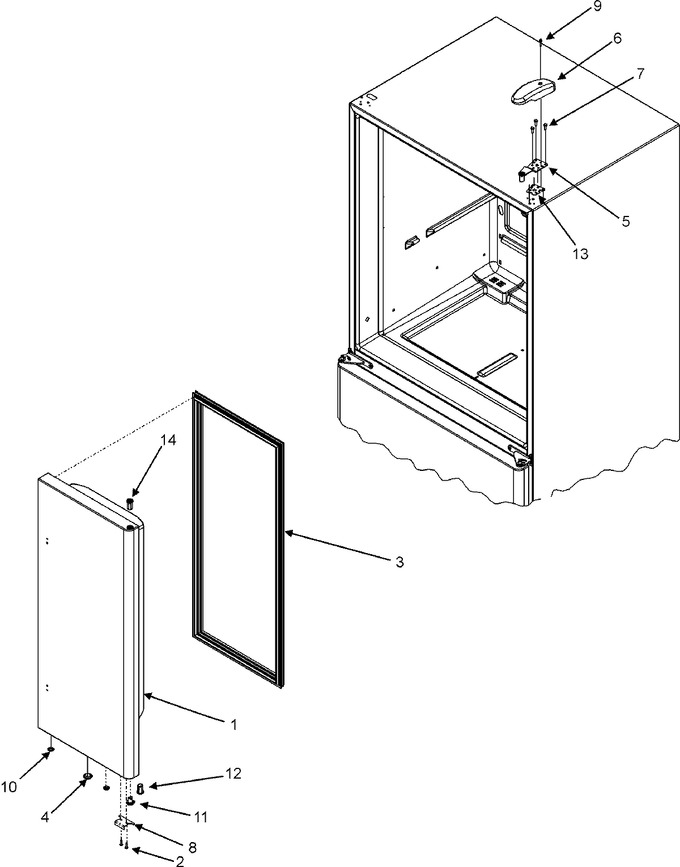

Diagram #	Part Number		Description	Series	Find a Video
1	67007053		Door Assy., Rt Ref. Foam (wht)	12
	67002727		Door Assy., Rt Ref. Foam (wht)	10
2	WP98165		Screw   (Replaces:67006287)	12
	WPW10348409		Screw, Mounting   (Replaces:M0211533)	10
3	W10830189		Gasket, French Door (wht)   (Replaces:67003546)	10
4	A3080002		Plug, Button (wht)	10
5	WP12566606ED		Hinge, Top (blk)   (Replaces:67001011)	10
6	12684202W		Cover, Top Hinge (rt-wht)	10
7	WP489349		Screw, Tf   (Replaces:M0238731)	10
8	67006278		Stop, Door (wht)	12
	12968202W		Stop, Door (wht)   (Replaces:67003779)	10
9	WP8281196		Screw-mach   (Replaces:M0202327)	10
10	10712401		Plug, Vent (wht)	10
11	WP67003638		Closure, Door (wht)	10
12	12028601W		Bushing, Door (wht)   (Replaces:67002732)	10
13	12579702		Shim, Top Hinge	10
14	WP67004977		Bushing, Door (wht)   (Replaces:67003368)	10
